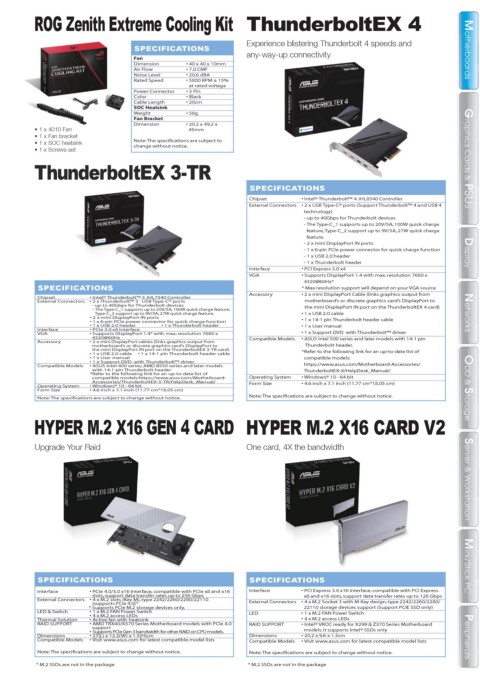

Page 177 - ASUS_WORLD_134_ebook

ROG Zenith Extreme Cooling Kit ThunderboltEX 4

Experience blistering Thunderbolt 4 speeds and
SPECIFICATIONS Motherboards Motherboards
Fan any-way-up connectivity
Dimension • 40 x 40 x 10mm
Air Flow • 7.0 CMF
Noise Level • 20.6 dBA
Rated Speed • 5800 RPM ± 15%

at rated voltage
Power Connector • 3 Pin
Color • Black
Cable Length • 20cm
SOC Heatsink
Weight • 58g
Fan Bracket
Dimension • 20.2 x 49.2 x
• 1 x 4010 Fan 45mm
• 1 x Fan bracket
• 1 x SOC heatsink Note: The specifications are subject to
change without notice.
• 1 x Screws set Graphics Cards & PSUS Graphics Cards & PSUS
ThunderboltEX 3-TR
SPECIFICATIONS
Chipset • Intel® Thunderbolt™ 4 JHL8540 Controller
External Connectors • 2 x USB Type-C® ports (Support Thunderbolt™ 4 and USB 4
technology)
- up to 40Gbps for Thunderbolt devices
- The Type-C_1 supports up to 20V/5A, 100W quick charge
feature, Type-C_2 support up to 9V/3A, 27W quick charge
feature.
- 2 x mini DisplayPort IN ports
- 1 x 6-pin PCIe power connector for quick charge function
- 1 x USB 2.0 header Display Display
- 1 x Thunderbolt header
Interface • PCI Express 3.0 x4
VGA • Supports DisplayPort 1.4 with max. resolution 7680 x
4320@60Hz*
SPECIFICATIONS * Max resolution support will depend on your VGA source
Accessory • 2 x mini DisplayPort Cable (links graphics output from
Chipset • Intel® Thunderbolt™ 3 JHL7540 Controller
External Connectors • 2 x Thunderbolt™ 3 USB Type-C® ports motherboard’s or discrete graphics card’s DisplayPort to
- up to 40Gbps for Thunderbolt devices the mini DisplayPort IN port on the ThunderboltEX 4 card)
- The Type-C_1 supports up to 20V/5A, 100W quick charge feature,
Type-C_2 support up to 9V/3A, 27W quick charge feature. • 1 x USB 2.0 cable Networks Networks
• 2 x mini DisplayPort IN ports
• 1 x 6-pin PCIe power connector for quick charge function • 1 x 14-1 pin Thunderbolt header cable
• 1 x USB 2.0 header • 1 x Thunderbolt header • 1 x User manual
Interface • PCIe 3.0 x4 interface
VGA • Supports DisplayPort 1.4* with max. resolution 7680 x • 1 x Support DVD with Thunderbolt™ driver
4320@60Hz Compatible Models • ASUS Intel 500 series and later models with 14-1 pin
Accessory • 2 x mini DisplayPort cables (links graphics output from
motherboard’s or discrete graphics card’s DisplayPort to Thunderbolt header.
the mini DisplayPort IN port on the ThunderboltEX 3-TR card) *Refer to the following link for an up-to-date list of
• 1 x USB 2.0 cable • 1 x 14-1 pin Thunderbolt header cable
• 1 x User manual compatible models:
• 1 x Support DVD with Thunderbolt™ driver
Compatible Models • ASUS Intel 400 series, AMD B550 series and later models https://www.asus.com/Motherboard-Accessories/
with 14-1 pin Thunderbolt header ThunderboltEX-4/HelpDesk_Manual/
*Refer to the following link for an up-to-date list of
compatible models:https://www.asus.com/Motherboard- Operating System • Windows® 10 - 64 bit
Accessories/ThunderboltEX-3-TR/HelpDesk_Manual/ Form Size • 4.6 inch x 7.1 inch (11.77 cm*18.05 cm)
Operating System • Windows® 10 - 64 bit
Form Size • 4.6 inch x 7.1 inch (11.77 cm*18.05 cm) ODD & Storage ODD & Storage
Note: The specifications are subject to change without notice.
Note: The specifications are subject to change without notice.
HYPER M.2 X16 GEN 4 CARD HYPER M.2 X16 CARD V2
Upgrade Your Raid One card, 4X the bandwidth Server & Workstation Server & Workstation

Mini / Stick PC Mini / Stick PC
SPECIFICATIONS SPECIFICATIONS
Interface • PCIe 4.0/3.0 x16 interface, compatible with PCIe x8 and x16 Interface • PCI Express 3.0 x16 interface, compatible with PCI Express
slots, support data transfer rates up to 256 Gbps x8 and x16 slots, support data transfer rates up to 128 Gbps
External Connectors • 4 x M.2 slots (Key M), type 2242/2260/2280/22110
(supports PCIe 4.0)* External Connectors • 4 x M.2 Socket 3 with M Key design, type 2242/2260/2280/
* Supports PCIe M.2 storage devices only. 22110 storage devices support (Support PCIE SSD only)
LED & Switch • 1 x M.2 FAN Power Switch LED
• 4 x M.2 access LEDs
Thermal Solution • Active fan with heatsink • 4 x M.2 access LEDs
RAID SUPPORT • AMD TRX40/X570 Series Motherboard models with PCIe 4.0 RAID SUPPORT • Intel® VROC ready for X299 & Z370 Series Motherboard
support
• Supports PCIe Gen 3 bandwidth for other RAID on CPU models. models. It supports Intel® SSDs only

Dimensions • 27(L) x 12.2(W) x 1.5(H)cm Dimensions • 20.2 x 9.6 x 1.3cm Peripherals

Compatible Models • Visit www.asus.com for latest compatible model lists Compatible Models • Visit www.asus.com for latest compatible model lists

*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Note: The specifications are subject to change without notice. Note: The specifications are subject to change without notice.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
• 1 x M.2 FAN Power SwitchPeripherals
* M.2 SSDs are not in the package * M.2 SSDs are not in the package ASUSWORLD 175
