WS C246M PRO

Intel Chipset

Motherboards
Motherboards

CPU LGA 1151 Chipset Intel® C246
PCIe x16 3 SATA 6 Gb/s 8
LAN 2 USB 3.1 1 Type A, 1 Type C
Audio 8-CH DDR4 2666/2400/2133
Graphics Cards & PSUS
Graphics Cards & PSUS

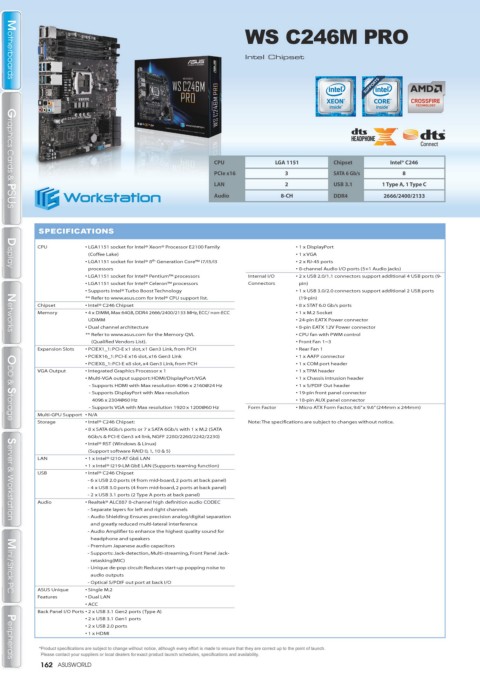

SPECIFICATIONS

CPU • LGA1151 socket for Intel® Xeon® Processor E2100 Family • 1 x DisplayPort
(Coffee Lake) • 1 x VGA

• LGA1151 socket for Intel® 8 th Generation Core™ i7/i5/i3 • 2 x RJ-45 ports
processors • 8-channel Audio I/O ports (5+1 Audio jacks)
Display
Display
• LGA1151 socket for Intel® Pentium™ processors Internal I/O • 2 x USB 2.0/1.1 connectors support additional 4 USB ports (9-

• LGA1151 socket for Intel® Celeron™ processors Connectors pin)
• Supports Intel® Turbo Boost Technology • 1 x USB 3.0/2.0 connectors support additional 2 USB ports

** Refer to www.asus.com for Intel® CPU support list. (19-pin)

Chipset • Intel® C246 Chipset • 8 x STAT 6.0 Gb/s ports

Memory • 4 x DIMM, Max 64GB, DDR4 2666/2400/2133 MHz, ECC/ non-ECC • 1 x M.2 Socket

UDIMM • 24-pin EATX Power connector

• Dual channel architecture • 8-pin EATX 12V Power connector

Networks
Networks

** Refer to www.asus.com for the Memory QVL • CPU fan with PWM control

(Qualified Vendors List). • Front Fan 1~3
Expansion Slots • PCIEX1_1: PCI-E x1 slot, x1 Gen3 Link, from PCH • Rear Fan 1

• PCIEX16_1: PCI-E x16 slot, x16 Gen3 Link • 1 x AAFP connector

• PCIEX8_1: PCI-E x8 slot, x4 Gen3 Link, from PCH • 1 x COM port header
VGA Output • Integrated Graphics Processor x 1 • 1 x TPM header
• Multi-VGA output support: HDMI/DisplayPort/VGA • 1 x Chassis intrusion header

- Supports HDMI with Max resolution 4096 x 2160@24 Hz • 1 x S/PDIF Out header

- Supports DisplayPort with Max resolution • 19-pin front panel connector

4096 x 2304@60 Hz • 18-pin AUX panel connector

- Supports VGA with Max resolution 1920 x 1200@60 Hz Form Factor • Micro ATX Form Factor, 9.6” x 9.6” (244mm x 244mm)
Multi-GPU Support • N/A
Storage • Intel® C246 Chipset: Note: The specifications are subject to changes without notice.
ODD & Storage
ODD & Storage

• 8 x SATA 6Gb/s ports or 7 x SATA 6Gb/s with 1 x M.2 (SATA

6Gb/s & PCI-E Gen3 x4 link, NGFF 2280/2260/2242/2230)

• Intel® RST (Windows & Linux)

(Support software RAID 0, 1, 10 & 5)
LAN • 1 x Intel® I210-AT GbE LAN

• 1 x Intel® I219-LM GbE LAN (Supports teaming function)
USB • Intel® C246 Chipset

- 6 x USB 2.0 ports (4 from mid-board, 2 ports at back panel)

- 4 x USB 3.0 ports (4 from mid-board, 2 ports at back panel)
- 2 x USB 3.1 ports (2 Type A ports at back panel)

Audio • Realtek® ALC887 8-channel high definition audio CODEC

- Separate layers for left and right channels

- Audio Shielding: Ensures precision analog/digital separation
Server & Workstation
Server & Workstation
and greatly reduced multi-lateral interference
- Audio Amplifier to enhance the highest quality sound for

headphone and speakers
- Premium Japanese audio capacitors

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-

retasking(MIC)
- Unique de-pop circuit: Reduces start-up popping noise to

audio outputs
- Optical S/PDIF out port at back I/O

ASUS Unique • Single M.2

Mini / Stick PC
Mini / Stick PC

Features • Dual LAN
• ACC
Back Panel I/O Ports • 2 x USB 3.1 Gen2 ports (Type A)
• 2 x USB 3.1 Gen1 ports
• 2 x USB 2.0 ports
• 1 x HDMI Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
