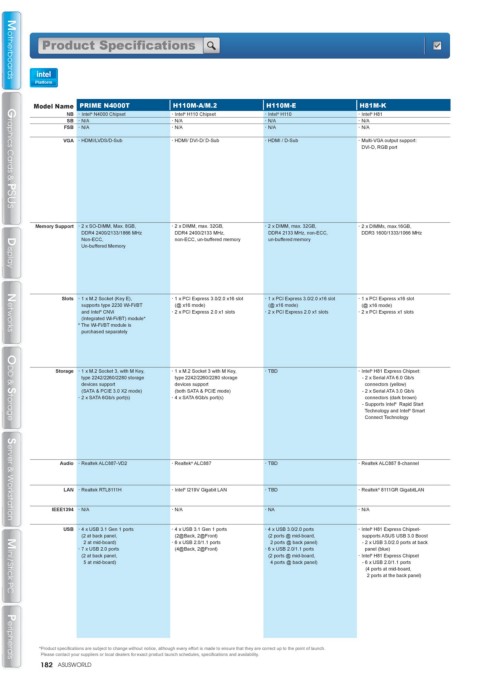

Product Specifications

Motherboards
Platform
Motherboards
Model Name PRIME N4000T H110M-A/M.2 H110M-E H81M-K
NB ．Intel ® N4000 Chipset ．Intel ® H110 Chipset ．Intel ® H110 ．Intel ® H81
SB ．N/A ．N/A ．N/A ．N/A
FSB ．N/A ．N/A ．N/A ．N/A
VGA ．HDMI/LVDS/D-Sub ．HDMI/ DVI-D/ D-Sub ．HDMI / D-Sub ．Multi-VGA output support:
DVI-D, RGB port

Graphics Cards & PSUS
Graphics Cards & PSUS
Memory Support ．2 x SO-DIMM, Max. 8GB, ．2 x DIMM, max. 32GB, ．2 x DIMM, max. 32GB, ．2 x DIMMs, max.16GB,
DDR4 2400/2133/1866 MHz DDR4 2400/2133 MHz, DDR4 2133 MHz, non-ECC, DDR3 1600/1333/1066 MHz
Non-ECC, non-ECC, un-buffered memory un-buffered memory
Un-buffered Memory

Display
Display

Slots ．1 x M.2 Socket (Key E), ．1 x PCI Express 3.0/2.0 x16 slot ．1 x PCI Express 3.0/2.0 x16 slot ．1 x PCI Express x16 slot
supports type 2230 Wi-Fi/BT (@ x16 mode) (@ x16 mode) (@ x16 mode)
and Intel ® CNVi ．2 x PCI Express 2.0 x1 slots ．2 x PCI Express 2.0 x1 slots ．2 x PCI Express x1 slots
(Integrated Wi-Fi/BT) module*
* The Wi-Fi/BT module is
purchased separately
Networks
Networks

Storage ．1 x M.2 Socket 3, with M Key, ．1 x M.2 Socket 3 with M Key, ．TBD ．Intel ® H81 Express Chipset:
type 2242/2260/2280 storage type 2242/2260/2280 storage - 2 x Serial ATA 6.0 Gb/s
devices support devices support connectors (yellow)
(SATA & PCIE 3.0 X2 mode) (both SATA & PCIE mode) - 2 x Serial ATA 3.0 Gb/s
．2 x SATA 6Gb/s port(s) ．4 x SATA 6Gb/s port(s) connectors (dark brown)
- Supports Intel Rapid Start
®
Technology and Intel ® Smart
Connect Technology
ODD & Storage
ODD & Storage

Audio ．Realtek ALC887-VD2 ．Realtek ® ALC887 ．TBD ．Realtek ALC887 8-channel

LAN ．Realtek RTL8111H ．Intel ® I219V Gigabit LAN ．TBD ．Realtek ® 8111GR GigabitLAN

IEEE1394 ．N/A ．N/A ．NA ．N/A

Server & Workstation
Server & Workstation
USB ．4 x USB 3.1 Gen 1 ports ．4 x USB 3.1 Gen 1 ports ．4 x USB 3.0/2.0 ports ．Intel ® H81 Express Chipset-
(2@Back, 2@Front) (2 ports @ mid-board, supports ASUS USB 3.0 Boost
2 at mid-board) ．6 x USB 2.0/1.1 ports 2 ports @ back panel) - 2 x USB 3.0/2.0 ports at back
．7 x USB 2.0 ports (4@Back, 2@Front) ．6 x USB 2.0/1.1 ports panel (blue)
(2 at back panel, (2 ports @ mid-board, ．Intel H81 Express Chipset
®
5 at mid-board) 4 ports @ back panel) - 6 x USB 2.0/1.1 ports
(4 ports at mid-board,
2 ports at the back panel)
(2 at back panel, Mini / Stick PC
Mini / Stick PC

*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
