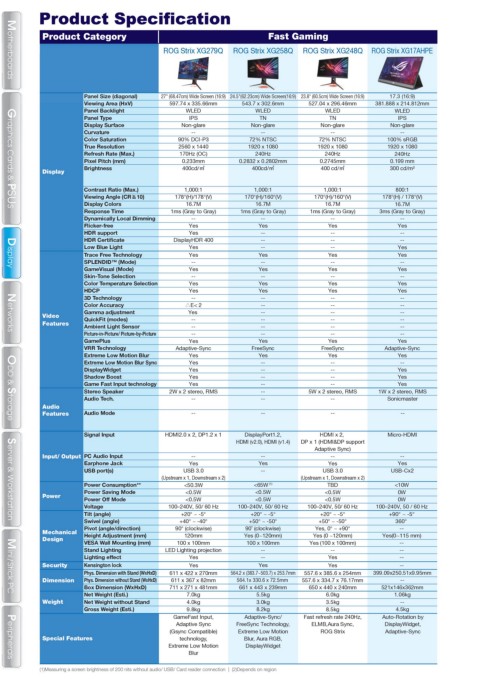

Page 258 - ASUS_WORLD_134_ebook

Product Category Fast Gaming
ROG Strix XG279Q ROG Strix XG258Q ROG Strix XG248Q ROG Strix XG17AHPE

Motherboards
Motherboards
Panel Size (diagonal) 27" (68.47cm) Wide Screen (16:9) 24.5"(62.23cm) Wide Screen(16:9) 23.8" (60.5cm) Wide Screen (16:9) 17.3 (16:9)
Viewing Area (HxV) 597.74 x 335.66mm 543.7 x 302.6mm 527.04 x 296.46mm 381.888 x 214.812mm
Panel Backlight WLED WLED WLED WLED
Panel Type IPS TN TN IPS
Display Surface Non-glare Non-glare Non-glare Non-glare
Curvature -- -- -- --
Color Saturation 90% DCI-P3 72% NTSC 72% NTSC 100% sRGB
True Resolution 2560 x 1440 1920 x 1080 1920 x 1080 1920 x 1080
Refresh Rate (Max.) 170Hz (OC) 240Hz 240Hz 240Hz
Pixel Pitch (mm) 0.233mm 0.2832 x 0.2802mm 0.2745mm 0.199 mm
Brightness 400cd/㎡ 400cd/㎡ 400 cd/㎡ 300 cd/m²
Display
Contrast Ratio (Max.) 1,000:1 1,000:1 1,000:1 800:1
Viewing Angle (CR≧10) 178°(H)/178°(V) 170°(H)/160°(V) 170°(H)/160°(V) 178°(H) / 178°(V)
Display Colors 16.7M 16.7M 16.7M 16.7M
Response Time 1ms (Gray to Gray) 1ms (Gray to Gray) 1ms (Gray to Gray) 3ms (Gray to Gray)
Graphics Cards & PSUS
Graphics Cards & PSUS
Dynamically Local Dimming -- -- -- --
Flicker-free Yes Yes Yes Yes
HDR support Yes -- -- --
HDR Certificate DisplayHDR 400 -- -- --
Low Blue Light Yes -- -- Yes
Trace Free Technology Yes Yes Yes Yes
SPLENDID™ (Mode) -- -- -- --
GameVisual (Mode) Yes Yes Yes Yes
Display
Display
Skin-Tone Selection -- -- -- --
Color Temperature Selection Yes Yes Yes Yes
HDCP Yes Yes Yes Yes
3D Technology -- -- -- --
Color Accuracy △E< 2 -- -- --
Gamma adjustment Yes -- -- --
Video QuickFit (modes) -- -- -- --
Features Ambient Light Sensor -- -- -- --
Picture-in-Picture/ Picture-by-Picture -- -- -- --
Networks
Networks
GamePlus Yes Yes Yes Yes
VRR Technology Adaptive-Sync FreeSync FreeSync Adaptive-Sync
Extreme Low Motion Blur Yes Yes Yes Yes
Extreme Low Motion Blur Sync Yes -- -- --
DisplayWidget Yes -- -- Yes
Shadow Boost Yes -- -- Yes
Game Fast Input technology Yes -- -- Yes
Stereo Speaker 2W x 2 stereo, RMS -- 5W x 2 stereo, RMS 1W x 2 stereo, RMS
Audio Tech. -- -- -- Sonicmaster
Audio
Features Audio Mode -- -- -- --
ODD & Storage
ODD & Storage
Signal Input HDMI2.0 x 2, DP1.2 x 1 DisplayPort1.2, HDMI x 2, Micro-HDMI
HDMI (v2.0), HDMI (v1.4) DP x 1 (HDMI&DP support
Adaptive Sync)
Input/ Output PC Audio Input -- -- -- --
Earphone Jack Yes Yes Yes Yes
USB port(s) USB 3.0 -- USB 3.0 USB-Cx2
(Upstream x 1, Downstream x 2) (Upstream x 1, Downstream x 2)
Power Consumption** <50.3W <65W (1) TBD <10W
Power Saving Mode <0.5W <0.5W <0.5W 0W
Power
Power Off Mode <0.5W <0.5W <0.5W 0W
Voltage 100–240V, 50/ 60 Hz 100–240V, 50/ 60 Hz 100–240V, 50/ 60 Hz 100–240V, 50 / 60 Hz
Tilt (angle) +20° ~ -5° +20° ~ -5° +20° ~ -5° +90° ~ -5°
Swivel (angle) +40° ~ -40° +50° ~ -50° +50° ~ -50° 360°
Server & Workstation
Server & Workstation
Pivot (angle/direction) 90° (clockwise) 90˚ (clockwise) Yes, 0° ~ +90° --
Mechanical Height Adjustment (mm) 120mm Yes (0~120mm) Yes (0 ~120mm) Yes(0~115 mm)
Design
VESA Wall Mounting (mm) 100 x 100mm 100 x 100mm Yes (100 x 100mm) --
Stand Lighting LED Lighting projection -- -- --
Lighting effect Yes -- Yes --
Security Kensington lock Yes Yes Yes --
Phys. Dimension with Stand (WxHxD) 611 x 422 x 270mm 564.2 x (383.7~503.7) x 253.7mm 557.6 x 385.6 x 254mm 399.09x250.51x9.95mm
Dimension Phys. Dimension without Stand (WxHxD) 611 x 367 x 82mm 564.1x 330.6 x 72.5mm 557.6 x 334.7 x 76.17mm --
Box Dimension (WxHxD) 711 x 271 x 481mm 661 x 443 x 239mm 650 x 440 x 240mm 521x146x362mm
Net Weight (Esti.) 7.0kg 5.5kg 6.0kg 1.06kg
Mini / Stick PC
Mini / Stick PC
Weight Net Weight without Stand 4.0kg 3.0kg 3.5kg --
Gross Weight (Esti.) 9.8kg 8.2kg 8.5kg 4.5kg
GameFast Input, Adaptive-Sync/ Fast refresh rate 240Hz, Auto-Rotation by
Adaptive Sync FreeSync Technology, ELMB,Aura Sync, DisplayWidget,
(Gsync Compatible) Extreme Low Motion ROG Strix Adaptive-Sync
Special Features Peripherals technology, Blur, Aura RGB,
Extreme Low Motion DisplayWidget
Blur
Peripherals
(1)Measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection | (2)Depends on region
