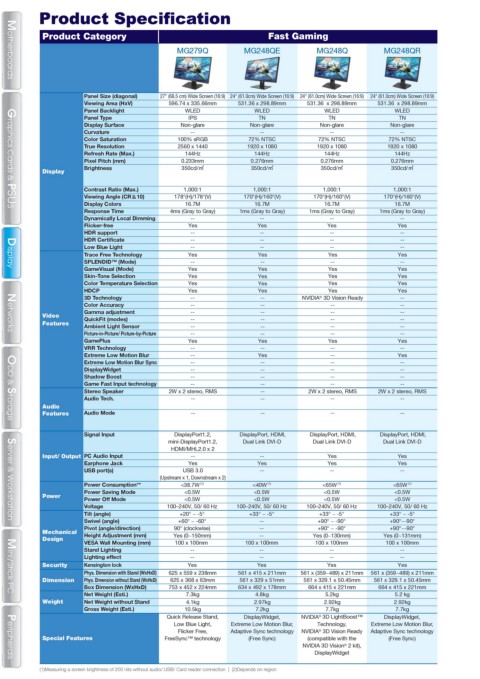

Page 260 - ASUS_WORLD_134_ebook

Product Category Fast Gaming
MG279Q MG248QE MG248Q MG248QR

Motherboards
Motherboards
Panel Size (diagonal) 27" (68.5 cm) Wide Screen (16:9) 24" (61.0cm) Wide Screen (16:9) 24" (61.0cm) Wide Screen (16:9) 24" (61.0cm) Wide Screen (16:9)
Viewing Area (HxV) 596.74 x 335.66mm 531.36 x 298.89mm 531.36 x 298.89mm 531.36 x 298.89mm
Panel Backlight WLED WLED WLED WLED
Panel Type IPS TN TN TN
Display Surface Non-glare Non-glare Non-glare Non-glare
Curvature -- -- -- --
Color Saturation 100% sRGB 72% NTSC 72% NTSC 72% NTSC
True Resolution 2560 x 1440 1920 x 1080 1920 x 1080 1920 x 1080
Refresh Rate (Max.) 144Hz 144Hz 144Hz 144Hz
Pixel Pitch (mm) 0.233mm 0.276mm 0.276mm 0.276mm
Brightness 350cd/㎡ 350cd/㎡ 350cd/㎡ 350cd/㎡
Display
Contrast Ratio (Max.) 1,000:1 1,000:1 1,000:1 1,000:1
Viewing Angle (CR≧10) 178°(H)/178°(V) 170°(H)/160°(V) 170°(H)/160°(V) 170°(H)/160°(V)
Display Colors 16.7M 16.7M 16.7M 16.7M
Response Time 4ms (Gray to Gray) 1ms (Gray to Gray) 1ms (Gray to Gray) 1ms (Gray to Gray)
Graphics Cards & PSUS
Graphics Cards & PSUS
Dynamically Local Dimming -- -- -- --
Flicker-free Yes Yes Yes Yes
HDR support -- -- -- --
HDR Certificate -- -- -- --
Low Blue Light -- -- -- --
Trace Free Technology Yes Yes Yes Yes
SPLENDID™ (Mode) -- -- -- --
GameVisual (Mode) Yes Yes Yes Yes
Display
Display
Skin-Tone Selection Yes Yes Yes Yes
Color Temperature Selection Yes Yes Yes Yes
HDCP Yes Yes Yes Yes
3D Technology -- -- NVIDIA ® 3D Vision Ready --
Color Accuracy -- -- -- --
Gamma adjustment -- -- -- --
Video QuickFit (modes) -- -- -- --
Features
Ambient Light Sensor -- -- -- --
Picture-in-Picture/ Picture-by-Picture -- -- -- --
Networks
Networks
GamePlus Yes Yes Yes Yes
VRR Technology -- -- -- --
Extreme Low Motion Blur -- Yes -- Yes
Extreme Low Motion Blur Sync -- -- -- --
DisplayWidget -- -- -- --
Shadow Boost -- -- -- --
Game Fast Input technology -- -- -- --
Stereo Speaker 2W x 2 stereo, RMS -- 2W x 2 stereo, RMS 2W x 2 stereo, RMS
Audio Tech. -- -- -- --
Audio
Features Audio Mode -- -- -- --
ODD & Storage
ODD & Storage
Signal Input DisplayPort1.2, DisplayPort, HDMI, DisplayPort, HDMI, DisplayPort, HDMI,
mini-DisplayPort1.2, Dual Link DVI-D Dual Link DVI-D Dual Link DVI-D
HDMI/MHL2.0 x 2
Input/ Output PC Audio Input -- -- Yes Yes
Earphone Jack Yes Yes Yes Yes
USB port(s) USB 3.0 -- -- --
(Upstream x 1, Downstream x 2)
Power Consumption** <38.7W (1) <40W (1) <65W (1) <65W (1)
Power Saving Mode <0.5W <0.5W <0.5W <0.5W
Power Power Off Mode <0.5W <0.5W <0.5W <0.5W
Voltage 100–240V, 50/ 60 Hz 100–240V, 50/ 60 Hz 100–240V, 50/ 60 Hz 100–240V, 50/ 60 Hz
Tilt (angle) +20° ~ -5° +33° ~ -5° +33° ~ -5° +33° ~ -5°
Swivel (angle) +60° ~ -60° -- +90° ~ -90° +90°~-90°
Server & Workstation
Server & Workstation
Pivot (angle/direction) 90° (clockwise) -- +90° ~ -90° +90°~-90°
Mechanical
Design Height Adjustment (mm) Yes (0~150mm) -- Yes (0~130mm) Yes (0~131mm)
VESA Wall Mounting (mm) 100 x 100mm 100 x 100mm 100 x 100mm 100 x 100mm
Stand Lighting -- -- -- --
Lighting effect -- -- -- --
Security Kensington lock Yes Yes Yes Yes
Phys. Dimension with Stand (WxHxD) 625 x 559 x 238mm 561 x 415 x 211mm 561 x (359~489) x 211mm 561 x (359~489) x 211mm
Dimension Phys. Dimension without Stand (WxHxD) 625 x 368 x 63mm 561 x 329 x 51mm 561 x 329.1 x 50.45mm 561 x 329.1 x 50.45mm
Box Dimension (WxHxD) 753 x 452 x 224mm 634 x 492 x 178mm 664 x 415 x 221mm 664 x 415 x 221mm
Net Weight (Esti.) 7.3kg 4.8kg 5.2kg 5.2 kg
Mini / Stick PC
Mini / Stick PC
Weight Net Weight without Stand 4.1kg 2.97kg 2.92kg 2.92kg
Gross Weight (Esti.) 10.5kg 7.2kg 7.7kg 7.7kg
Quick Release Stand, DisplayWidget, NVIDIA 3D LightBoost™ DisplayWidget,
®
Low Blue Light, Extreme Low Motion Blur, Technology, Extreme Low Motion Blur,
Flicker Free, Adaptive Sync technology NVIDIA ® 3D Vision Ready Adaptive Sync technology
Special Features Peripherals FreeSync™ technology (Free Sync) (compatible with the (Free Sync)
NVIDIA 3D Vision ® 2 kit),
DisplayWidget
Peripherals
(1)Measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection | (2)Depends on region
