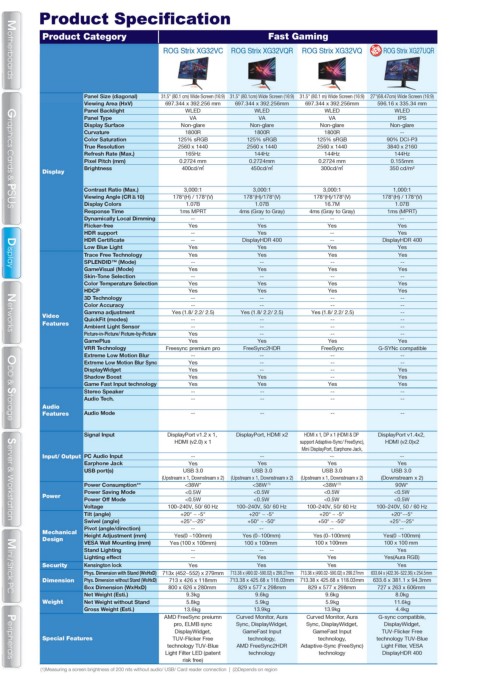

Page 256 - ASUS_WORLD_134_ebook

Product Category Fast Gaming
ROG Strix XG32VC ROG Strix XG32VQR ROG Strix XG32VQ ROG Strix XG27UQR

Motherboards
Motherboards
Panel Size (diagonal) 31.5" (80.1 cm) Wide Screen (16:9) 31.5" (80.1cm) Wide Screen (16:9) 31.5" (80.1 m) Wide Screen (16:9) 27"(68.47cm) Wide Screen (16:9)
Viewing Area (HxV) 697.344 x 392.256 mm 697.344 x 392.256mm 697.344 x 392.256mm 596.16 x 335.34 mm
Panel Backlight WLED WLED WLED WLED
Panel Type VA VA VA IPS
Display Surface Non-glare Non-glare Non-glare Non-glare
Curvature 1800R 1800R 1800R --
Color Saturation 125% sRGB 125% sRGB 125% sRGB 90% DCI-P3
True Resolution 2560 x 1440 2560 x 1440 2560 x 1440 3840 x 2160
Refresh Rate (Max.) 165Hz 144Hz 144Hz 144Hz
Pixel Pitch (mm) 0.2724 mm 0.2724mm 0.2724 mm 0.155mm
Brightness 400cd/㎡ 450cd/㎡ 300cd/㎡ 350 cd/m²
Display
Contrast Ratio (Max.) 3,000:1 3,000:1 3,000:1 1,000:1
Viewing Angle (CR≧10) 178°(H) / 178°(V) 178°(H)/178°(V) 178°(H)/178°(V) 178°(H) / 178°(V)
Display Colors 1.07B 1.07B 16.7M 1.07B
Response Time 1ms MPRT 4ms (Gray to Gray) 4ms (Gray to Gray) 1ms (MPRT)
Graphics Cards & PSUS
Graphics Cards & PSUS
Dynamically Local Dimming -- -- -- --
Flicker-free Yes Yes Yes Yes
HDR support -- Yes -- Yes
HDR Certificate -- DisplayHDR 400 -- DisplayHDR 400
Low Blue Light Yes Yes Yes Yes
Trace Free Technology Yes Yes Yes Yes
SPLENDID™ (Mode) -- -- -- --
GameVisual (Mode) Yes Yes Yes Yes
Display
Display
Skin-Tone Selection -- -- -- --
Color Temperature Selection Yes Yes Yes Yes
HDCP Yes Yes Yes Yes
3D Technology -- -- -- --
Color Accuracy -- -- -- --
Gamma adjustment Yes (1.8/ 2.2/ 2.5) Yes (1.8/ 2.2/ 2.5) Yes (1.8/ 2.2/ 2.5) --
Video QuickFit (modes) -- -- -- --
Features Ambient Light Sensor -- -- -- --
Picture-in-Picture/ Picture-by-Picture Yes -- -- --
Networks
Networks
GamePlus Yes Yes Yes Yes
VRR Technology Freesync premium pro FreeSync2HDR FreeSync G-SYNc compatible
Extreme Low Motion Blur -- -- -- --
Extreme Low Motion Blur Sync Yes -- -- --
DisplayWidget Yes -- -- Yes
Shadow Boost Yes Yes -- Yes
Game Fast Input technology Yes Yes Yes Yes
Stereo Speaker -- -- -- --
Audio Tech. -- -- -- --
Audio
Features Audio Mode -- -- -- --
ODD & Storage
ODD & Storage
Signal Input DisplayPort v1.2 x 1, DisplayPort, HDMI x2 HDMI x 1, DP x 1 (HDMI & DP DisplayPort v1.4x2,
HDMI (v2.0) x 1 support Adaptive-Sync/ FreeSync), HDMI (v2.0)x2
Mini DisplayPort, Earphone Jack,
Input/ Output PC Audio Input -- -- -- --
Earphone Jack Yes Yes Yes Yes
USB port(s) USB 3.0 USB 3.0 USB 3.0 USB 3.0
(Upstream x 1, Downstream x 2) (Upstream x 1, Downstream x 2) (Upstream x 1, Downstream x 2) (Downstream x 2)
Power Consumption** <38W* <38W (1) <38W (1) 90W*
Power Saving Mode <0.5W <0.5W <0.5W <0.5W
Power
Power Off Mode <0.5W <0.5W <0.5W <0.5W
Voltage 100–240V, 50/ 60 Hz 100–240V, 50/ 60 Hz 100–240V, 50/ 60 Hz 100–240V, 50 / 60 Hz
Tilt (angle) +20° ~ -5° +20° ~ -5° +20° ~ -5° +20°~-5°
Swivel (angle) +25°~-25° +50° ~ -50° +50° ~ -50° +25°~-25°
Server & Workstation
Server & Workstation
Pivot (angle/direction) -- -- -- --
Mechanical Height Adjustment (mm) Yes(0 ~100mm) Yes (0~100mm) Yes (0~100mm) Yes(0 ~100mm)
Design
VESA Wall Mounting (mm) Yes (100 x 100mm) 100 x 100mm 100 x 100mm 100 x 100 mm
Stand Lighting -- -- -- Yes
Lighting effect -- Yes Yes Yes(Aura RGB)
Security Kensington lock Yes Yes Yes Yes
Phys. Dimension with Stand (WxHxD) 713x (452~552) x 279mm 713.38 x (490.02~590.02) x 299.27mm 713.38 x (490.02~590.02) x 299.27mm 633.64 x (422.36~522.36) x 254.5mm
Dimension Phys. Dimension without Stand (WxHxD) 713 x 426 x 118mm 713.38 x 425.68 x 118.03mm 713.38 x 425.68 x 118.03mm 633.6 x 381.1 x 94.3mm
Box Dimension (WxHxD) 800 x 626 x 280mm 829 x 577 x 298mm 829 x 577 x 298mm 727 x 263 x 606mm
Net Weight (Esti.) 9.3kg 9.6kg 9.6kg 8.0kg
Mini / Stick PC
Mini / Stick PC
Weight Net Weight without Stand 5.8kg 5.9kg 5.9kg 11.6kg
Gross Weight (Esti.) 13.6kg 13.9kg 13.9kg 4.4kg
AMD FreeSync preiumn Curved Monitor, Aura Curved Monitor, Aura G-sync compatible,
pro, ELMB sync Sync, DisplayWidget, Sync, DisplayWidget, DisplayWidget,
DisplayWidget, GameFast Input GameFast Input TUV-Flicker Free
Special Features Peripherals TUV-Flicker Free technology, technology, technology TUV-Blue
technology TUV-Blue AMD FreeSync2HDR Adaptive-Sync (FreeSync) Light Filter, VESA
Light Filter LED (patent technology technology DisplayHDR 400
risk free)
Peripherals
(1)Measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection | (2)Depends on region
