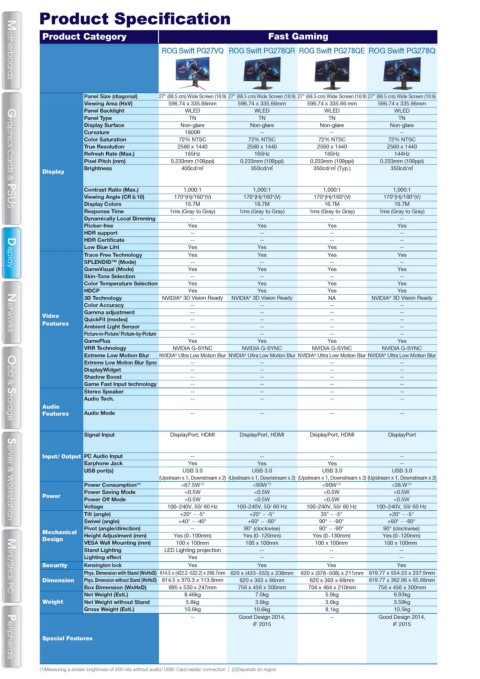

Page 252 - ASUS_WORLD_134_ebook

Product Category Fast Gaming
ROG Swift PG27VQ ROG Swift PG278QR ROG Swift PG278QE ROG Swift PG278Q

Motherboards
Motherboards
Panel Size (diagonal) 27" (68.5 cm) Wide Screen (16:9) 27" (68.5 cm) Wide Screen (16:9) 27" (68.5 cm) Wide Screen (16:9) 27" (68.5 cm) Wide Screen (16:9)
Viewing Area (HxV) 596.74 x 335.66mm 596.74 x 335.66mm 596.74 x 335.66 mm 596.74 x 335.66mm
Panel Backlight WLED WLED WLED WLED
Panel Type TN TN TN TN
Display Surface Non-glare Non-glare Non-glare Non-glare
Curvature 1800R -- -- --
Color Saturation 72% NTSC 72% NTSC 72% NTSC 72% NTSC
True Resolution 2560 x 1440 2560 x 1440 2560 x 1440 2560 x 1440
Refresh Rate (Max.) 165Hz 165Hz 165Hz 144Hz
Pixel Pitch (mm) 0.233mm (109ppi) 0.233mm (109ppi) 0.233mm (109ppi) 0.233mm (109ppi)
Brightness 400cd/㎡ 350cd/㎡ 350cd/㎡ (Typ.) 350cd/㎡
Display
Contrast Ratio (Max.) 1,000:1 1,000:1 1,000:1 1,000:1
Viewing Angle (CR≧10) 170°(H)/160°(V) 170°(H)/160°(V) 170°(H)/160°(V) 170°(H)/160°(V)
Display Colors 16.7M 16.7M 16.7M 16.7M
Graphics Cards & PSUS
Graphics Cards & PSUS
Response Time 1ms (Gray to Gray) 1ms (Gray to Gray) 1ms (Gray to Gray) 1ms (Gray to Gray)
Dynamically Local Dimming -- -- -- --
Flicker-free Yes Yes Yes Yes
HDR support -- -- -- --
HDR Certificate -- -- -- --
Low Blue Liht Yes Yes Yes --
Trace Free Technology Yes Yes Yes Yes
SPLENDID™ (Mode) -- -- -- --
GameVisual (Mode) Yes Yes Yes Yes
Display
Display
Skin-Tone Selection -- -- -- --
Color Temperature Selection Yes Yes Yes Yes
HDCP Yes Yes Yes Yes
3D Technology NVIDIA ® 3D Vision Ready NVIDIA ® 3D Vision Ready NA NVIDIA ® 3D Vision Ready
Color Accuracy -- -- -- --
Gamma adjustment -- -- -- --
Video QuickFit (modes) -- -- -- --
Features Ambient Light Sensor -- -- -- --
Picture-in-Picture/ Picture-by-Picture -- -- -- --
Networks
Networks
GamePlus Yes Yes Yes Yes
VRR Technology NVIDIA G-SYNC NVIDIA G-SYNC NVIDIA G-SYNC NVIDIA G-SYNC
Extreme Low Motion Blur NVIDIA ® Ultra Low Motion Blur NVIDIA ® Ultra Low Motion Blur NVIDIA ® Ultra Low Motion Blur NVIDIA ® Ultra Low Motion Blur
Extreme Low Motion Blur Sync -- -- -- --
DisplayWidget -- -- -- --
Shadow Boost -- -- -- --
Game Fast Input technology -- -- -- --
Stereo Speaker -- -- -- --
Audio Tech. -- -- -- --
Audio
Features Audio Mode -- -- -- --
ODD & Storage
ODD & Storage
Signal Input DisplayPort, HDMI DisplayPort, HDMI DisplayPort, HDMI DisplayPort
Input/ Output PC Audio Input -- -- -- --
Earphone Jack Yes Yes Yes --
USB port(s) USB 3.0 USB 3.0 USB 3.0 USB 3.0
(Upstream x 1, Downstream x 2) (Upstream x 1, Downstream x 2) (Upstream x 1, Downstream x 2) (Upstream x 1, Downstream x 2)
Power Consumption** <67.5W (1) <90W (1) <90W (1) <38.W (1)
Power Saving Mode <0.5W <0.5W <0.5W <0.5W
Power
Power Off Mode <0.5W <0.5W <0.5W <0.5W
Voltage 100–240V, 50/ 60 Hz 100–240V, 50/ 60 Hz 100–240V, 50/ 60 Hz 100–240V, 50/ 60 Hz
Tilt (angle) +20° ~ -5° +20° ~ -5° 33° ~ -5° +20° ~ -5°
Swivel (angle) +40° ~ -40° +60° ~ -60° 90° ~ -90° +60° ~ -60°
Server & Workstation
Server & Workstation
Pivot (angle/direction) -- 90° (clockwise) 90° ~ -90° 90° (clockwise)
Mechanical Height Adjustment (mm) Yes (0~100mm) Yes (0~120mm) Yes (0~130mm) Yes (0~120mm)
Design
VESA Wall Mounting (mm) 100 x 100mm 100 x 100mm 100 x 100mm 100 x 100mm
Stand Lighting LED Lighting projection -- -- --
Lighting effect Yes -- -- --
Security Kensington lock Yes Yes Yes Yes
Phys. Dimension with Stand (WxHxD) 614.5 x (422.2~522.2) x 268.7mm 620 x (433~553) x 238mm 620 x (378~508) x 211mm 619.77 x 554.53 x 237.9mm
Dimension Phys. Dimension without Stand (WxHxD) 614.5 x 370.3 x 113.8mm 620 x 363 x 66mm 620 x 363 x 66mm 619.77 x 362.96 x 65.98mm
Box Dimension (WxHxD) 695 x 530 x 247mm 756 x 456 x 300mm 704 x 464 x 210mm 756 x 456 x 300mm
Net Weight (Esti.) 8.46kg 7.0kg 5.9kg 6.93kg
Mini / Stick PC
Mini / Stick PC
Weight Net Weight without Stand 5.8kg 3.6kg 3.6kg 3.59kg
Gross Weight (Esti.) 10.6kg 10.6kg 8.1kg 10.5kg
-- Good Design 2014, -- Good Design 2014,
iF 2015 iF 2015
Special Features Peripherals
Peripherals
(1)Measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection | (2)Depends on region
