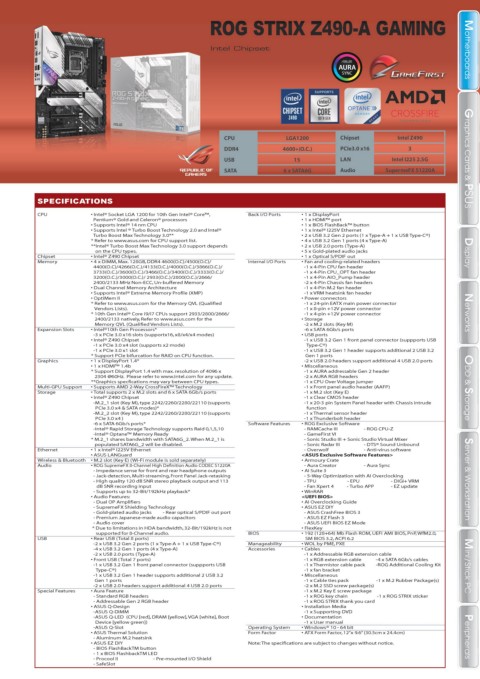

ROG STRIX Z490-A GAMING

Intel Chipset Motherboards Motherboards

CPU LGA1200 Chipset Intel Z490
DDR4 4600+(O.C.) PCIe3.0 x16 3
USB 15 LAN Intel I225 2.5G Graphics Cards & PSUS
SATA 6 x SATA6G Audio SupermeFX S1220A

SPECIFICATIONS
Graphics Cards & PSUS
CPU • Intel® Socket LGA 1200 for 10th Gen Intel® Core™, Back I/O Ports • 1 x DisplayPort
Pentium® Gold and Celeron® processors • 1 x HDMI™ port
• Supports Intel® 14 nm CPU • 1 x BIOS FlashBack™ button
• Supports Intel ® Turbo Boost Technology 2.0 and Intel® • 1 x Intel® I225V Ethernet
Turbo Boost Max Technology 3.0** • 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
* Refer to www.asus.com for CPU support list. • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
**Intel® Turbo Boost Max Technology 3.0 support depends • 2 x USB 2.0 ports (Type-A)
on the CPU types. • 5 x Gold-plated audio jacks
Chipset • Intel® Z490 Chipset • 1 x Optical S/PDIF out Display Display
Memory • 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/ Internal I/O Ports • Fan and cooling-related headers
4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/ -1 x 4-Pin CPU fan header
3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/ -1 x 4-Pin CPU_OPT fan header
3200(O.C.)/3000(O.C.)/ 2933(O.C.)/2800(O.C.)/2666/ -1 x 4-Pin AIO_Pump header
2400/2133 MHz Non-ECC, Un-buffered Memory -2 x 4-Pin Chassis fan headers
• Dual Channel Memory Architecture -1 x 4-Pin M.2 fan header
• Supports Intel® Extreme Memory Profile (XMP) -1 x VRM heatsink fan header
• OptiMem II • Power connectors
* Refer to www.asus.com for the Memory QVL (Qualified -1 x 24-pin EATX main power connector
Vendors Lists). -1 x 8-pin +12V power connector
* 10th Gen Intel® Core i9/i7 CPUs support 2933/2800/2666/ -1 x 4-pin +12V power connector Networks
2400/2133 natively, Refer to www.asus.com for the • Storage
Memory QVL (Qualified Vendors Lists). -2 x M.2 slots (Key M)
Networks
Expansion Slots • Intel®10th Gen Processors* -6 x SATA 6Gb/s ports
-3 x PCIe 3.0 x16 slots (supportx16, x8/x4/x4 modes) • USB ports
• Intel® Z490 Chipset -1 x USB 3.2 Gen 1 front panel connector (suppports USB
-1 x PCIe 3.0 x4 slot (supports x2 mode) Type-C®)
-1 x PCIe 3.0 x1 slot -1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2
* Support PCIe bifurcation for RAID on CPU function. Gen 1 ports
Graphics • 1 x DisplayPort 1.4* -2 x USB 2.0 headers support additional 4 USB 2.0 ports
• 1 x HDMI™ 1.4b • Miscellaneous
* Support DisplayPort 1.4 with max. resolution of 4096 x -1 x AURA addressable Gen 2 header
2304 @60Hz. Please refer to www.intel.com for any update. -2 x AURA RGB headers
**Graphics specfications may vary between CPU types. -1 x CPU Over Voltage jumper
Multi-GPU Support • Supports AMD 2-Way CrossFireX™ Technology -1 x Front panel audio header (AAFP) ODD & Storage
Storage • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports -1 x M.2 slot (Key E)
• Intel® Z490 Chipset -1 x Clear CMOS header
-M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports -1 x 20-3 pin System Panel header with Chassis intrude
PCIe 3.0 x4 & SATA modes)* function
-M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports -1 x Thermal sensor header
PCIe 3.0 x4 ) -1 x Thunderbolt header
ODD & Storage
-6 x SATA 6Gb/s ports* Software Features • ROG Exclusive Software
-Intel® Rapid Storage Technology supports Raid 0,1,5,10 - RAMCache III - ROG CPU-Z
-Intel® Optane™ Memory Ready - GameFirst VI
* M.2_1 shares bandwidth with SATA6G_2. When M.2_1 is - Sonic Studio III + Sonic Studio Virtual Mixer
populated SATA6G_2 will be disabled. - Sonic Radar III - DTS® Sound Unbound
Ethernet • 1 x Intel® I225V Ethernet - Overwolf - Anti-virus software
• ASUS LANGuard <ASUS Exclusive Software Features>
Wireless & Bluetooth • M.2 slot (Key E) (Wi-Fi module is sold separately) • Armoury Crate
Audio • ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Aura Creator - Aura Sync
- Impedance sense for front and rear headphone outputs • AI Suite 3
- Jack-detection, Multi-streaming, Front Panel Jack-retasking - 5-Way Optimization with AI Overclocking
- High quality 120 dB SNR stereo playback output and 113 - TPU - EPU - DIGI+ VRM Server & Workstation
dB SNR recording input - Fan Xpert 4 - Turbo APP - EZ update
- Supports up to 32-Bit/192kHz playback* • WinRAR
• Audio Features: <UEFI BIOS>
- Dual OP Amplifiers • AI Overclocking Guide
- SupremeFX Shielding Technology • ASUS EZ DIY
- Gold-plated audio jacks - Rear optical S/PDIF out port - ASUS CrashFree BIOS 3
- Premium Japanese-made audio capacitors - ASUS EZ Flash 3
Server & Workstation
- Audio cover - ASUS UEFI BIOS EZ Mode
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not • FlexKey
supported for 8-Channel audio. BIOS • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0,
USB • Rear USB (Total 8 ports) SM BIOS 3.2, ACPI 6.2
-2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) Manageability • WOL by PME, PXE
-4 x USB 3.2 Gen 1 ports (4 x Type-A) Accessories • Cables
-2 x USB 2.0 ports (Type-A) -1 x Addressable RGB extension cable
• Front USB (Total 7 ports) -1 x RGB extension cable -4 x SATA 6Gb/s cables
-1 x USB 3.2 Gen 1 front panel connector (suppports USB -1 x Thermistor cable pack -ROG Additional Cooling Kit Mini / Stick PC
Type-C®) -1 x fan bracket
-1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 • Miscellaneous
Gen 1 ports -1 x Cable ties pack -1 x M.2 Rubber Package(s)
-2 x USB 2.0 headers support additional 4 USB 2.0 ports -2 x M.2 SSD screw package(s)
Special Features • Aura Feature -1 x M.2 Key E screw package
Mini / Stick PC
- Standard RGB headers -1 x ROG key chain -1 x ROG STRIX sticker
- Addressable Gen 2 RGB header -1 x ROG STRIX thank you card
• ASUS Q-Design • Installation Media
-ASUS Q-DIMM -1 x Supporting DVD
-ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot • Documentation
Device [yellow green]) -1 x User manual
-ASUS Q-Slot Operating System • Windows® 10 - 64 bit
• ASUS Thermal Solution Form Factor • ATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm)
- Aluminum M.2 heatsink Peripherals Peripherals
• ASUS EZ DIY Note: The specifications are subject to changes without notice.
- BIOS FlashBackTM button
- 1 x BIOS FlashbackTM LED
- Procool II - Pre-mounted I/O Shield
- SafeSlot
