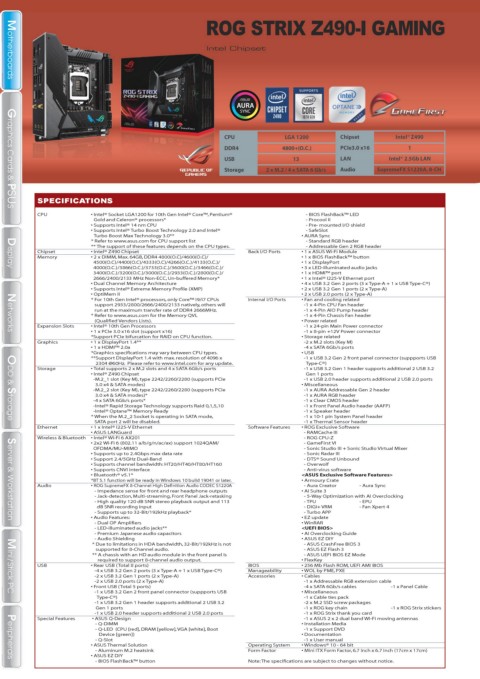

ROG STRIX Z490-I GAMING

Intel Chipset

Motherboards
Motherboards

CPU LGA 1200 Chipset Intel® Z490
DDR4 4800+(O.C.) PCIe3.0 x16 1
USB 13 LAN Intel® 2.5Gb LAN
Storage 2 x M.2 / 4 x SATA 6 Gb/s Audio SupremeFX S1220A, 8-CH

SPECIFICA
SPECIFICATIONSTIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • Intel® Socket LGA1200 for 10th Gen Intel® Core™, Pentium® - BIOS FlashBack™ LED
Gold and Celeron® processors* - Procool II
• Supports Intel® 14 nm CPU - Pre- mounted I/O shield
• Supports Intel® Turbo Boost Technology 2.0 and Intel® - SafeSlot
Turbo Boost Max Technology 3.0** • AURA Sync
* Refer to www.asus.com for CPU support list - Standard RGB header
** The support of these features depends on the CPU types. - Addressable Gen 2 RGB header
Chipset • Intel® Z490 Chipset Back I/O Ports • 1 x ASUS Wi-Fi Module
Memory • 2 x DIMM, Max. 64GB, DDR4 4800(O.C)/4600(O.C)/ • 1 x BIOS FlashBack™ button
4500(O.C)/4400(O.C)/4333(O.C)/4266(O.C.)/4133(O.C.)/ • 1 x DisplayPort
4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/ • 3 x LED-illuminated audio jacks
Display
Display
3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/ • 1 x HDMI™ port
2666/2400/2133 MHz Non-ECC, Un-buffered Memory* • 1 x Intel® I225-V Ethernet port
• Dual Channel Memory Architecture • 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
• Supports Intel® Extreme Memory Profile (XMP) • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• OptiMem II • 2 x USB 2.0 ports (2 x Type-A)
* For 10th Gen Intel® processors, only Core™ i9/i7 CPUs Internal I/O Ports • Fan and cooling related
support 2933/2800/2666/2400/2133 natively, others will -1 x 4-Pin CPU Fan header
run at the maximum transfer rate of DDR4 2666MHz. -1 x 4-Pin AIO Pump header
* Refer to www.asus.com for the Memory QVL -1 x 4-Pin Chassis Fan header
(Qualified Vendors Lists). • Power related
Expansion Slots • Intel® 10th Gen Processors -1 x 24-pin Main Power connector
• 1 x PCIe 3.0 x16 slot (support x16) -1 x 8-pin +12V Power connector
Networks
Networks
*Support PCIe bifurcation for RAID on CPU function. • Storage related
Graphics • 1 x DisplayPort 1.4** -2 x M.2 slots (Key M)
• 1 x HDMI™ 2.0a -4 x SATA 6Gb/s ports
*Graphics specifications may vary between CPU types. • USB
**Support DisplayPort 1.4 with max. resolution of 4096 x -1 x USB 3.2 Gen 2 front panel connector (suppports USB
2304 @60Hz. Please refer to www.intel.com for any update. Type-C®)
Storage • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports -1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2
• Intel® Z490 Chipset Gen 1 ports
-M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe -1 x USB 2.0 header supports additional 2 USB 2.0 ports
3.0 x4 & SATA modes) • Miscellaneous
-M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe -1 x AURA Addressable Gen 2 header
3.0 x4 & SATA modes)* -1 x AURA RGB header
-4 x SATA 6Gb/s ports* -1 x Clear CMOS header
-Intel® Rapid Storage Technology supports Raid 0,1,5,10 -1 x Front Panel Audio header (AAFP)
-Intel® Optane™ Memory Ready -1 x Speaker header
* When the M.2_2 Socket is operating in SATA mode, -1 x 10-1 pin System Panel header
SATA port 2 will be disabled. -1 x Thermal Sensor header
ODD & Storage
ODD & Storage
Ethernet • 1 x Intel® I225-V Ethernet Software Features • ROG Exclusive Software
• ASUS LANGuard - RAMCache III
Wireless & Bluetooth • Intel® Wi-Fi 6 AX201 - ROG CPU-Z
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/ - GameFirst VI
OFDMA/MU-MIMO - Sonic Studio III + Sonic Studio Virtual Mixer
• Supports up to 2.4Gbps max data rate - Sonic Radar III
• Support 2.4/5GHz Dual-Band - DTS® Sound Unbound
• Supports channel bandwidth: HT20/HT40/HT80/HT160 - Overwolf
• Supports CNVI interface - Anti-virus software
• Bluetooth® v5.1* <ASUS Exclusive Software Features>
*BT 5.1 function will be ready in Windows 10 build 19041 or later. • Armoury Crate
Audio • ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Aura Creator - Aura Sync
- Impedance sense for front and rear headphone outputs • AI Suite 3
- Jack-detection, Multi-streaming, Front Panel Jack-retasking - 5-Way Optimization with AI Overclocking
- High quality 120 dB SNR stereo playback output and 113 - TPU - EPU
dB SNR recording input - DIGI+ VRM - Fan Xpert 4
- Supports up to 32-Bit/192kHz playback* - Turbo APP
• Audio Features: • EZ update
Server & Workstation
Server & Workstation
- Dual OP Amplifiers • WinRAR
- LED-illuminated audio jacks** <UEFI BIOS>
- Premium Japanese audio capacitors • AI Overclocking Guide
- Audio Shielding • ASUS EZ DIY
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not - ASUS CrashFree BIOS 3
supported for 8-Channel audio. - ASUS EZ Flash 3
** A chassis with an HD audio module in the front panel is - ASUS UEFI BIOS EZ Mode
required to support 8-channel audio output. • FlexKey
USB • Rear USB (Total 8 ports) BIOS • 256 Mb Flash ROM, UEFI AMI BIOS
-4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) Manageability • WOL by PME, PXE
-2 x USB 3.2 Gen 1 ports (2 x Type-A) Accessories • Cables
-2 x USB 2.0 ports (2 x Type-A) -1 x Addressable RGB extension cable
• Front USB (Total 5 ports) -4 x SATA 6Gb/s cables -1 x Panel Cable
-1 x USB 3.2 Gen 2 front panel connector (suppports USB • Miscellaneous
Mini / Stick PC
Mini / Stick PC
Type-C®) -1 x Cable ties pack
-1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 -2 x M.2 SSD screw packages
Gen 1 ports -1 x ROG key chain -1 x ROG Strix stickers
-1 x USB 2.0 header supports additional 2 USB 2.0 ports -1 x ROG Strix thank you card
Special Features • ASUS Q-Design -1 x ASUS 2 x 2 dual band Wi-Fi moving antennas
- Q-DIMM • Installation Media
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot -1 x Support DVD
Device [green]) • Documentation
- Q-Slot -1 x User manual
• ASUS Thermal Solution Operating System • Windows® 10 - 64 bit
- Aluminum M.2 heatsink Form Factor • Mini ITX Form Factor, 6.7 inch x 6.7 inch (17cm x 17cm)
• ASUS EZ DIY
- BIOS FlashBack™ button Note: The specifications are subject to changes without notice.
