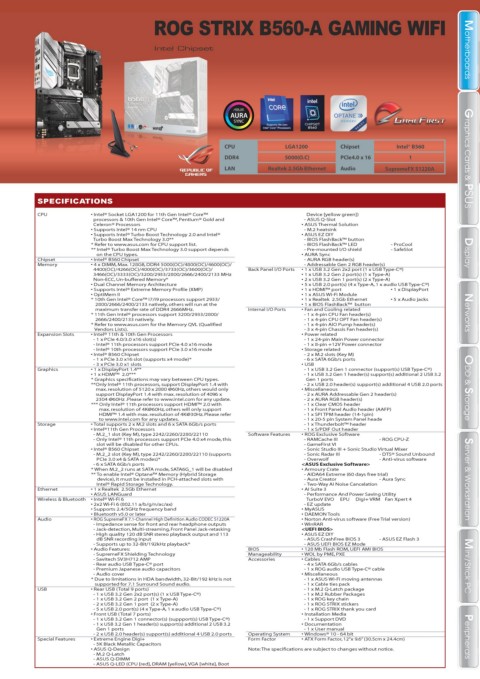

ROG STRIX B560-A GAMING WIFI

Intel Chipset Motherboards Motherboards

CPU LGA1200 Chipset Intel® B560
DDR4 5000(O.C) PCIe4.0 x 16 1 Graphics Cards & PSUS
LAN Realtek 2.5Gb Ethernet Audio SupremeFX S1220A

SPECIFICATIONS
Graphics Cards & PSUS
CPU • Intel® Socket LGA1200 for 11th Gen Intel® Core™ Device [yellow green])
processors & 10th Gen Intel® Core™, Pentium® Gold and - ASUS Q-Slot
Celeron® Processors • ASUS Thermal Solution
• Supports Intel® 14 nm CPU - M.2 heatsink
• Supports Intel® Turbo Boost Technology 2.0 and Intel® • ASUS EZ DIY
Turbo Boost Max Technology 3.0** - BIOS FlashBack™ button
* Refer to www.asus.com for CPU support list. D - ProCool
** Intel® Turbo Boost Max Technology 3.0 support depends - Pre-mounted I/O shield - SafeSlot
on the CPU types. • AURA Sync Display
Chipset • Intel® B560 Chipset - AURA RGB header(s)
Memory • 4 x DIMM, Max. 128GB, DDR4 5000(OC)/4800(OC)/4600(OC)/ - Addressable Gen 2 RGB header(s)
4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/ Back Panel I/O Ports • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- BIOS FlashBack™ LED isplay
3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz • 1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
Non-ECC, Un-buffered Memory* • 2 x USB 3.2 Gen 1 port(s) (2 x Type-A)
• Dual Channel Memory Architecture • 5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C®)
• Supports Intel® Extreme Memory Profile (XMP) • 1 x HDMI™ port • 1 x DisplayPort
• OptiMem II • 1 x ASUS Wi-Fi Module
* 10th Gen Intel® Core™ i7/i9 processors support 2933/ • 1 x Realtek 2.5Gb Ethernet • 5 x Audio jacks
2800/2666/2400/2133 natively, others will run at the • 1 x BIOS FlashBack™ button
maximum transfer rate of DDR4 2666MHz. Internal I/O Ports • Fan and Cooling related
* 11th Gen Intel® processors support 3200/2933/2800/ - 1 x 4-pin CPU Fan header(s) Networks
2666/2400/2133 natively. - 1 x 4-pin CPU OPT Fan header(s)
* Refer to www.asus.com for the Memory QVL (Qualified - 1 x 4-pin AIO Pump header(s)
Vendors Lists). - 3 x 4-pin Chassis Fan header(s)
Networks
Expansion Slots • Intel® 11th & 10th Gen Processors • Power related
- 1 x PCIe 4.0/3.0 x16 slot(s) - 1 x 24-pin Main Power connector
- Intel® 11th processors support PCIe 4.0 x16 mode - 1 x 8-pin +12V Power connector
- Intel® 10th processors support PCIe 3.0 x16 mode • Storage related
• Intel® B560 Chipset
- 1 x PCIe 3.0 x16 slot (supports x4 mode)* - 6 x SATA 6Gb/s ports
- 3 x PCIe 3.0 x1 slots • USB
Graphics • 1 x DisplayPort 1.4** - 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)
• 1 x HDMI™ 2.0*** - 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2
* Graphics specifications may vary between CPU types. Gen 1 ports
**Only Intel® 11th processors, support DisplayPort 1.4 with - 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
max. resolution of 5120 x 2880 @60Hz, others would only • Miscellaneous ODD & Storage
support DisplayPort 1.4 with max. resolution of 4096 x - 2 x AURA Addressable Gen 2 header(s)
2304 @60Hz .Please refer to www.intel.com for any update. - 2 x AURA RGB header(s)
*** Only Intel® 11th processors support HDMI™ 2.0 with - 1 x Clear CMOS header
max. resolution of 4K@60Hz, others will only support - 1 x Front Panel Audio header (AAFP)
HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer - 1 x SPI TPM header (14-1pin)
to www.intel.com for any updates. - 1 x 20-5 pin System Panel heade
- 2 x M.2 slots (Key M) ODD & Storage
Storage • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports - 1 x Thunderbolt™ header
• Intel®11th Gen Processors - 1 x S/PDIF Out header
- M.2_1 slot (Key M), type 2242/2260/2280/22110 Software Features • ROG Exclusive Software
- Only Intel® 11th processors support PCIe 4.0 x4 mode, this - RAMCache III - ROG CPU-Z
slot will be disabled for other CPUs. - GameFirst VI
• Intel® B560 Chipset - Sonic Studio III + Sonic Studio Virtual Mixer
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports - Sonic Radar III - DTS® Sound Unbound
PCIe 3.0 x4 & SATA modes)* - Overwolf - Anti-virus software
- 6 x SATA 6Gb/s ports <ASUS Exclusive Software>
* When M.2_2 runs at SATA mode, SATA6G_1 will be disabled • Armoury Crate
** To enable Intel® Optane™ Memory (Hybrid Storage - AIDA64 Extreme (60 days free trial)
device), it must be installed in PCH-attached slots with - Aura Creator - Aura Sync Server & Workstation
Intel® Rapid Storage Technology. - Two-Way AI Noise Cancelation
Ethernet • 1 x Realtek 2.5Gb Ethernet • AI Suite 3
• ASUS LANGuard - Performance And Power Saving Utility
Wireless & Bluetooth • Intel® Wi-Fi 6 TurboV EVO EPU Digi+ VRM Fan Xpert 4
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) - EZ update
• Supports 2.4/5GHz frequency band • MyASUS
• Bluetooth v5.0 or later • DAEMON Tools
Audio • ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A • Norton Anti-virus software (Free Trial version)
Server & Workstation
- Impedance sense for front and rear headphone outputs • WinRAR
- Jack-detection, Multi-streaming, Front Panel Jack-retasking <UEFI BIOS>
- High quality 120 dB SNR stereo playback output and 113 • ASUS EZ DIY
dB SNR recording input - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3
- Supports up to 32-Bit/192kHz playback* - ASUS UEFI BIOS EZ Mode
• Audio Features: BIOS • 128 Mb Flash ROM, UEFI AMI BIOS
- SupremeFX Shielding Technology Manageability • WOL by PME, PXE
- Savitech SV3H712 AMP Accessories • Cables
- Rear audio USB Type-C® port - 4 x SATA 6Gb/s cables Mini / Stick PC Mini / Stick PC
- Premium Japanese audio capacitors - 1 x ROG audio USB Type-C® cable
- Audio cover • Miscellaneous
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not - 1 x ASUS Wi-Fi moving antennas
supported for 7.1 Surround Sound audio. - 1 x Cable ties pack
USB • Rear USB (Total 9 ports) - 1 x M.2 Q-Latch package
- 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) - 1 x M.2 Rubber Packages
- 1 x USB 3.2 Gen 2 port (1 x Type-A) - 1 x ROG key chain
- 2 x USB 3.2 Gen 1 port (2 x Type-A) - 1 x ROG STRIX stickers
- 5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C®) - 1 x ROG STRIX thank you card
• Front USB (Total 7 ports) • Installation Media
- 1 x USB 3.2 Gen 1 connector(s) (suppport(s) USB Type-C®) - 1 x Support DVD
- 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 • Documentation
Gen 1 ports - 1 x User manual
- 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Operating System • Windows® 10 - 64 bit Peripherals
Special Features • Extreme Engine Digi+ Form Factor • ATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm)
- 5K Black Metallic Capacitors
• ASUS Q-Design Note: The specifications are subject to changes without notice.
- M.2 Q-Latch
- ASUS Q-DIMM
Peripherals
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot
