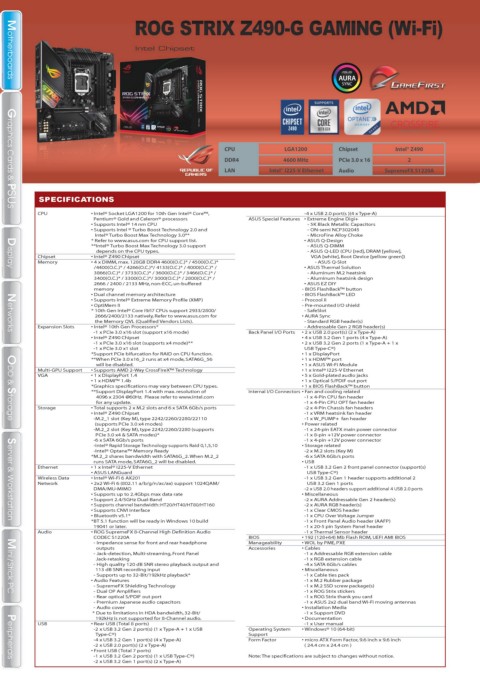

ROG STRIX Z490-G GAMING (Wi-Fi)

Intel Chipset

Motherboards
Motherboards

CPU LGA1200 Chipset Intel® Z490
DDR4 4600 MHz PCIe 3.0 x 16 2

LAN Intel® I225-V Ethernet Audio SupremeFX S1220A
SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • Intel® Socket LGA1200 for 10th Gen Intel® Core™, -4 x USB 2.0 port(s )(4 x Type-A)
Pentium® Gold and Celeron® processors ASUS Special Features • Extreme Engine Digi+
• Supports Intel® 14 nm CPU - 5K Black Metallic Capacitors
• Supports Intel ® Turbo Boost Technology 2.0 and - ON-semi NCP302045
Intel® Turbo Boost Max Technology 3.0** - MicroFine Alloy Choke
* Refer to www.asus.com for CPU support list. • ASUS Q-Design
**Intel® Turbo Boost Max Technology 3.0 support - ASUS Q-DIMM
depends on the CPU types. - ASUS Q-LED (CPU [red], DRAM [yellow],
Chipset • Intel® Z490 Chipset VGA [white], Boot Device [yellow green])
Memory • 4 x DIMM, max. 128GB DDR4 4600(O.C.)* / 4500(O.C.)* - ASUS Q-Slot
/4400(O.C.)* / 4266(O.C.)*/ 4133(O.C.)* / 4000(O.C.)* / • ASUS Thermal Solution
Display
Display
3866(O.C.)* / 3733(O.C.)* / 3600(O.C.)* / 3466(O.C.)* / - Aluminum M.2 heatsink
3400(O.C.)* / 3300(O.C.)*/ 3000(O.C.)* / 2800(O.C.)* / - Aluminum heatsink design
2666 / 2400 / 2133 MHz, non-ECC, un-buffered • ASUS EZ DIY
memory - BIOS FlashBack™ button
• Dual channel memory architecture - BIOS FlashBack™ LED
• Supports Intel® Extreme Memory Profile (XMP) - Procool II
• OptiMem II - Pre-mounted I/O shield
* 10th Gen Intel® Core i9/i7 CPUs support 2933/2800/ - SafeSlot
2666/2400/2133 natively, Refer to www.asus.com for • AURA Sync
the Memory QVL (Qualified Vendors Lists). - Standard RGB header(s)
Expansion Slots • Intel® 10th Gen Processors* - Addressable Gen 2 RGB header(s)
-1 x PCIe 3.0 x16 slot (support x16 mode) Back Panel I/O Ports • 2 x USB 2.0 port(s) (2 x Type-A)
Networks
Networks
• Intel® Z490 Chipset • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
-1 x PCIe 3.0 x16 slot (supports x4 mode)** • 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x
-1 x PCIe 3.0 x1 slot USB Type-C®)
*Support PCIe bifurcation for RAID on CPU function. • 1 x DisplayPort
**When PCIe 3.0 x16_2 runs at x4 mode, SATA6G_56 • 1 x HDMI™ port
will be disabled. • 1 x ASUS Wi-Fi Module
Multi-GPU Support • Supports AMD 2-Way CrossFireX™ Technology • 1 x Intel® I225-V Ethernet
VGA • 1 x DisplayPort 1.4 • 5 x Gold-plated audio jacks
• 1 x HDMI™ 1.4b • 1 x Optical S/PDIF out port
*Graphics specifications may vary between CPU types. • 1 x BIOS FlashBack™ button
**Support DisplayPort 1.4 with max. resolution of Internal I/O Connectors • Fan and cooling related
4096 x 2304 @60Hz. Please refer to www.intel.com -1 x 4-Pin CPU fan header
for any update. -1 x 4-Pin CPU OPT fan header
Storage • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports -2 x 4-Pin Chassis fan headers
• Intel® Z490 Chipset -1 x VRM heatsink fan header
-M.2_1 slot (Key M), type 2242/2260/2280/22110 -1 x W_PUMP+ fan header
ODD & Storage
ODD & Storage
(supports PCIe 3.0 x4 modes) • Power related
-M.2_2 slot (Key M), type 2242/2260/2280 (supports -1 x 24-pin EATX main power connector
PCIe 3.0 x4 & SATA modes)* -1 x 8-pin +12V power connector
-6 x SATA 6Gb/s ports -1 x 4-pin +12V power connector
-Intel® Rapid Storage Technology supports Raid 0,1,5,10 • Storage related
-Intel® Optane™ Memory Ready -2 x M.2 slots (Key M)
*M.2_2 shares bandwidth with SATA6G_2. When M.2_2 -6 x SATA 6Gb/s ports
runs SATA mode, SATA6G_2 will be disabled. • USB
Ethernet • 1 x Intel® I225-V Ethernet -1 x USB 3.2 Gen 2 front panel connector (support(s)
• ASUS LANGuard USB Type-C®)
Wireless Data • Intel® Wi-Fi 6 AX201 -1 x USB 3.2 Gen 1 header supports additional 2
Network • 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/ USB 3.2 Gen 1 ports
DMA/MU-MIMO -2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Supports up to 2.4Gbps max data rate • Miscellaneous
• Support 2.4/5GHz Dual-Band -2 x AURA Addressable Gen 2 header(s)
• Supports channel bandwidth: HT20/HT40/HT80/HT160 -2 x AURA RGB header(s)
• Supports CNVI interface -1 x Clear CMOS header
• Bluetooth v5.1* -1 x CPU Over Voltage Jumper
*BT 5.1 function will be ready in Windows 10 build -1 x Front Panel Audio header (AAFP)
Server & Workstation
Server & Workstation
19041 or later. -1 x 20-5 pin System Panel header
Audio • ROG SupremeFX 8-Channel High Definition Audio -1 x Thermal Sensor header
CODEC S1220A BIOS • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
- Impedance sense for front and rear headphone Manageability • WOL by PME, PXE
outputs Accessories • Cables
- Jack-detection, Multi-streaming, Front Panel -1 x Addressable RGB extension cable
Jack-retasking -1 x RGB extension cable
- High quality 120 dB SNR stereo playback output and -4 x SATA 6Gb/s cables
113 dB SNR recording input • Miscellaneous
- Supports up to 32-Bit/192kHz playback* -1 x Cable ties pack
• Audio Features -1 x M.2 Rubber package
- SupremeFX Shielding Technology -1 x M.2 SSD screw package(s)
- Dual OP Amplifiers -1 x ROG Strix stickers
Mini / Stick PC
Mini / Stick PC
- Rear optical S/PDIF out port -1 x ROG Strix thank you card
- Premium Japanese audio capacitors -1 x ASUS 2x2 dual band Wi-Fi moving antennas
- Audio cover • Installation Media
* Due to limitations in HDA bandwidth, 32-Bit/ -1 x Support DVD
192kHz is not supported for 8-Channel audio. • Documentation
USB • Rear USB (Total 8 ports) -1 x User manual
-2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Operating System • Windows® 10 (64-bit)
Type-C®) Support
-4 x USB 3.2 Gen 1 port(s) (4 x Type-A) Form Factor • micro ATX Form Factor, 9.6 inch x 9.6 inch
-2 x USB 2.0 port(s) (2 x Type-A) ( 24.4 cm x 24.4 cm )
• Front USB (Total 7 ports)
-1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®) Note: The specifications are subject to changes without notice.
Peripherals
Peripherals
-2 x USB 3.2 Gen 1 port(s) (2 x Type-A)
