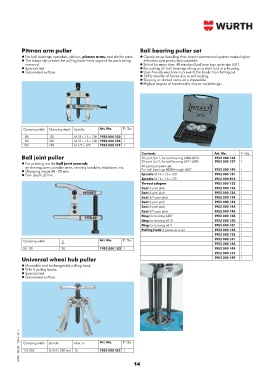

Pitman arm puller Ball bearing puller set
For ball bearings, sprockets, pinions, pitman arms, and similar parts. Clearly easier handling than known commercial systems makes higher
The clamp clip presses the pulling hook firmly against the parts being efficiency and productivity possible.
removed. Suited for more than 40 standard ball bearings up to size 6311.
Special steel. For pulling off ball bearings sitting on a shaft and in a housing.
Galvanized surface. User-friendly mechanism prevents the hooks from falling out.
100% transfer of forces due to self-locking.
Slipping or slanted removal is impossible.
Highest degree of functionality due to novel design.

Clamping width Clamping depth Spindle Art. No. P. Qty.

90 85 M 18 x 1.5 x 130 1952 000 130 1
90 100 M 18 x 1.5 x 130 1952 000 128 1
150 140 G 1/2 x 175 1952 000 129 1
Contents Art. No. P. Qty.
Ball joint puller 20-part, Set 1, for ball bearing 6000-6010 1952 000 134 1
20-part, Set 2, for ball bearing 6011-6305 1952 000 137 1
For pressing out the ball joint journals
on steering arms, knuckle arms, steering knuckles, stabilizers, etc. 40-part (complete set).
Clamping range 50 - 80 mm. For ball bearings 6000 through 6407 1952 000 140 1
Fork depth 35 mm. Spindle M 10 x 1.5 x 150 1952 000 131 1
Spindle M 14 x 1.5 x 175 1952 000 873 1
Thread adapter 1952 000 132 1
Seat 3-part pitch 1952 000 133 1
Seat 4-part pitch 1952 000 136 1
Seat 3/7-part pitch 1952 000 139 1
Seat 3-part pitch 1952 000 142 1
Seat 4-part pitch 1952 000 144 1
Seat 3/7-part pitch 1952 000 146 1
Ring for bearing 6407 1952 000 148 1
Ring for bearing 6310 1952 000 150 1
Ring for bearing 6311 1952 000 151 1
Pulling hook 4 pieces as a set 1952 000 135 1
1952 000 138 1
Clamping width 1 Art. No. P. Qty. 1952 000 141 1
1952 000 143 1
50 - 80 20 1952 000 152 1 1952 000 145 1
1952 000 147 1
Universal wheel hub puller 1952 000 149 1
Moveable and exchangeable pulling hook.
With 5 pulling hooks.
Special steel.
Galvanized surface.

MWF - 06/08 - 1 1514 - © • Clamping width Spindle Max. to Art. No. P. Qty.

1952 000 153 1
G 3/4 x 200 mm 10
115-225
14
