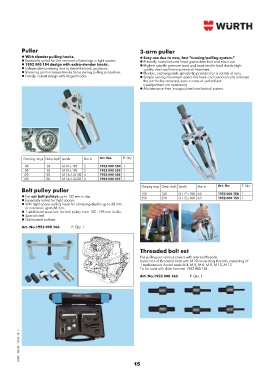

Puller 3-arm puller
With slender pulling hooks. Easy use due to new, fast “turning/pulling system.”
Especially suited for the removal of bearings in tight spaces. Precisely manufactured head guarantees fast and exact use.
1952 000 154 design with extra-slender hooks. Highest spindle pressure load and hook tensile load due to high-
Independent pressing due to shearlike hook guidance. quality steel and thermochemical treatment.
Shearing joint increases tensile force during pulling procedure. Flexible, exchangeable spindle tip provides for a variety of uses.
Handy, robust design with forged hooks. Simple turning movement opens the hook and automatically encloses
the part to be removed, even in case of vertical use
(readjustment not necessary).
Maintenance-free, encapsulated mechanical system.

Clamping range Clamp. depth Spindle Max. to Art. No. P. Qty.
80 85 M 10 x 105 2 1952 000 154 1
80 85 M 10 x 105 2 1952 000 155 1
120 120 M 14x1.5x130 4 1952 000 156 1
120 150 M 14x1.5x205 4 1952 000 157 1
Clamping range Clamp. depth Spindle Max. to Art. No. P. Qty.
Belt pulley puller
150 130 G 1/2 x 250 6.5 1952 000 158 1
For car belt pulleys up to 132 mm in dia. 250 250 G 1/2 x 350 6.5 1952 000 159 1
Especially suited for tight spaces.
With tight-space pulling hook for clamping depths up to 68 mm
or extension up to 88 mm.
1 additional cross bar for belt pulley from 132 - 195 mm in dia.
Special steel.
Galvanized surface.
Art. No.1952 000 166 P. Qty. 1

Threaded bolt set
For pulling out various covers with internal threads.
6-part set of threaded bolts with M 10 connecting threads, consisting of:
1 replacement thread each M 4, M 5, M 6, M 8, M 10, M 12.
To be used with slide hammer 1952 000 161.
Art. No.1952 000 162 P. Qty. 1
