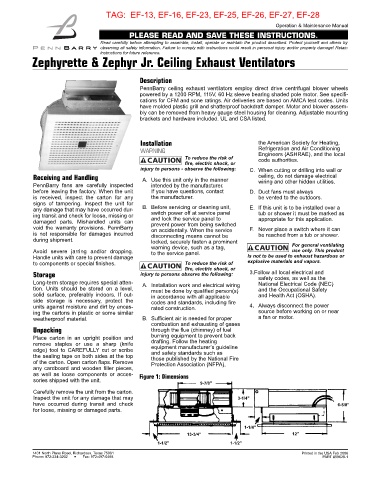

Page 71 - 233423 - Exhaust Fans_Neat

TAG: EF-13, EF-16, EF-23, EF-25, EF-26, EF-27, EF-28

Operation & Maintenance Manual
PLEASE READ AND SAVE THESE INSTRUCTIONS.
Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by
observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain
instructions for future reference.
Zephyrette & Zephyr Jr. Ceiling Exhaust Ventilators

Description
PennBarry ceiling exhaust ventilators employ direct drive centrifugal blower wheels
powered by a 1200 RPM, 115V, 60 Hz sleeve bearing shaded pole motor. See specifi-
cations for CFM and sone ratings. Air deliveries are based on AMCA test codes. Units
have molded plastic grill and shatterproof backdraft damper. Motor and blower assem-
bly can be removed from heavy gauge steel housing for cleaning. Adjustable mounting
brackets and hardware included. UL and CSA listed.

Installation the American Society for Heating,
WARNING Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local
To reduce the risk of code authorities.
fire, electric shock, or
injury to persons - observe the following: C. When cutting or drilling into wall or
Receiving and Handling A. Use this unit only in the manner ceiling, do not damage electrical
PennBarry fans are carefully inspected intended by the manufacturer. wiring and other hidden utilities.
before leaving the factory. When the unit If you have questions, contact D. Duct fans must always
is received, inspect the carton for any the manufacturer. be vented to the outdoors.
signs of tampering. Inspect the unit for
any damage that may have occurred dur- B. Before servicing or cleaning unit, E. If this unit is to be installed over a
switch power off at service panel
ing transit and check for loose, missing or and lock the service panel to tub or shower it must be marked as
appropriate for this application.
damaged parts. Mishandled units can prevent power from being switched
void the warranty provisions. PennBarry on accidentally. When the service F. Never place a switch where it can
is not responsible for damages incurred disconnecting means cannot be be reached from a tub or shower.
during shipment. locked, securely fasten a prominent
warning device, such as a tag, For general ventilating
Avoid severe jarring and/or dropping. to the service panel. use only. This product
Handle units with care to prevent damage is not to be used to exhaust hazardous or
to components or special finishes. To reduce the risk of explosive materials and vapors.
fire, electric shock, or
Storage injury to persons observe the following: 3.Follow all local electrical and
safety codes, as well as the
Long-term storage requires special atten- A. Installation work and electrical wiring National Electrical Code (NEC)
tion. Units should be stored on a level, must be done by qualified person(s) and the Occupational Safety
solid surface, preferably indoors. If out- in accordance with all applicable and Health Act (OSHA).
side storage is necessary, protect the codes and standards, including fire
units against moisture and dirt by encas- rated construction. 4. Always disconnect the power
ing the cartons in plastic or some similar source before working on or near
weatherproof material. B. Sufficient air is needed for proper a fan or motor.
combustion and exhausting of gases
Unpacking through the flue (chimney) of fuel
Place carton in an upright position and burning equipment to prevent back
remove staples or use a sharp (knife drafting. Follow the heating
edge) tool to CAREFULLY cut or scribe equipment manufacturer’s guideline
and safety standards such as
the sealing tape on both sides at the top those published by the National Fire
of the carton. Open carton flaps. Remove Protection Association (NFPA),
any cardboard and wooden filler pieces,
as well as loose components or acces- Figure 1: Dimensions
sories shipped with the unit.
9-7/8"
Carefully remove the unit from the carton.
Inspect the unit for any damage that may 3-1/4"
have occurred during transit and check 6-5/8"
for loose, missing or damaged parts.

1-1/4"
13-3/4" 12"
1-1/2" 1-1/2"
1401 North Plano Road, Richardson, Texas 75081 Printed in the USA Feb 2006
Phone: 972-234-3202 Fax: 972-497-0468 PART #59620-1
