The MAssing User inTerfAce And fUncTionAliTy 287

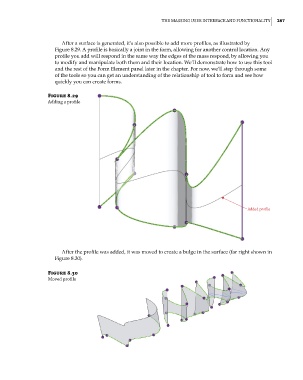

After a surface is generated, it’s also possible to add more profiles, as illustrated by
Figure 8.29. A profile is basically a joint in the form, allowing for another control location. Any
profile you add will respond in the same way the edges of the mass respond, by allowing you
to modify and manipulate both them and their location. We’ll demonstrate how to use this tool
and the rest of the Form Element panel later in the chapter. For now, we’ll step through some
of the tools so you can get an understanding of the relationship of tool to form and see how
quickly you can create forms.
Figure 8.29
Adding a profile
Added prole
After the profile was added, it was moved to create a bulge in the surface (far right shown in
Figure 8.30).
Figure 8.30
Moved profile
