288 | ChAPter 8 AdvAnced Modeling And MAssing

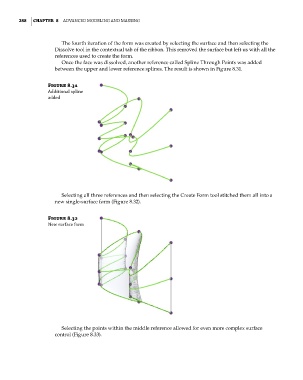

The fourth iteration of the form was created by selecting the surface and then selecting the
Dissolve tool in the contextual tab of the ribbon. This removed the surface but left us with all the
references used to create the form.
Once the face was dissolved, another reference called Spline Through Points was added
between the upper and lower reference splines. The result is shown in Figure 8.31.

Figure 8.31
Additional spline
added

Selecting all three references and then selecting the Create Form tool stitched them all into a
new single-surface form (Figure 8.32).

Figure 8.32
new surface form

Selecting the points within the middle reference allowed for even more complex surface
control (Figure 8.33).
