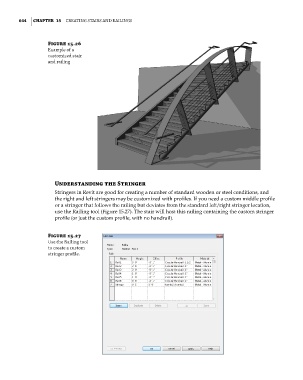

644 | ChapteR 15 Creating StairS and railingS
Figure 15.26
example of a
customized stair
and railing
Understanding the Stringer
Stringers in Revit are good for creating a number of standard wooden or steel conditions, and
the right and left stringers may be customized with profiles. If you need a custom middle profile
or a stringer that follows the railing but deviates from the standard left/right stringer location,
use the Railing tool (Figure 15.27). The stair will host this railing containing the custom stringer
profile (or just the custom profile, with no handrail).
Figure 15.27
Use the railing tool
to create a custom
stringer profile.
