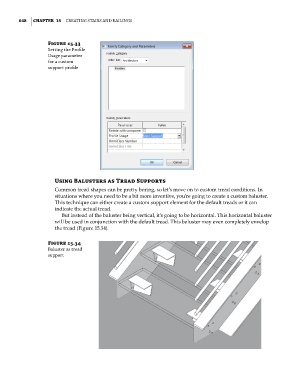

648 | ChapteR 15 Creating StairS and railingS

Figure 15.33
Setting the Profile
Usage parameter
for a custom
support profile

Using Balusters as tread Supports
Common tread shapes can be pretty boring, so let’s move on to custom tread conditions. In
situations where you need to be a bit more inventive, you’re going to create a custom baluster.
This technique can either create a custom support element for the default treads or it can
indicate the actual tread.
But instead of the baluster being vertical, it’s going to be horizontal. This horizontal baluster
will be used in conjunction with the default tread. This baluster may even completely envelop
the tread (Figure 15.34).

Figure 15.34
Baluster as tread
support
