650 | ChapteR 15 Creating StairS and railingS

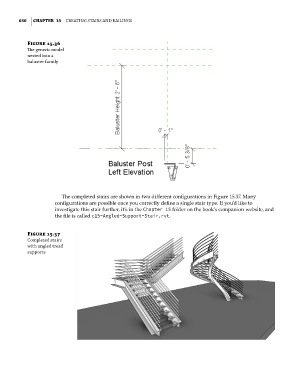

Figure 15.36
The generic model
nested into a
baluster family
The completed stairs are shown in two different configurations in Figure 15.37. Many
configurations are possible once you correctly define a single stair type. If you’d like to
investigate this stair further, it’s in the Chapter 15 folder on the book’s companion website, and
the file is called c15-Angled-Support-Stair.rvt.
Figure 15.37
Completed stairs
with angled tread
supports
