Creating StairS 645

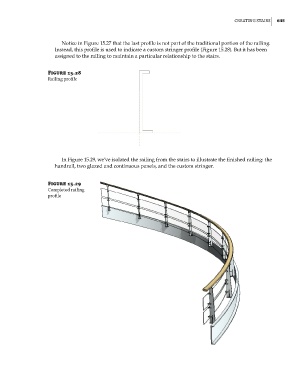

Notice in Figure 15.27 that the last profile is not part of the traditional portion of the railing.
Instead, this profile is used to indicate a custom stringer profile (Figure 15.28). But it has been
assigned to the railing to maintain a particular relationship to the stairs.
Figure 15.28
railing profile
In Figure 15.29, we’ve isolated the railing from the stairs to illustrate the finished railing: the
handrail, two glazed and continuous panels, and the custom stringer.
Figure 15.29
Completed railing
profile
