Creating Details 687

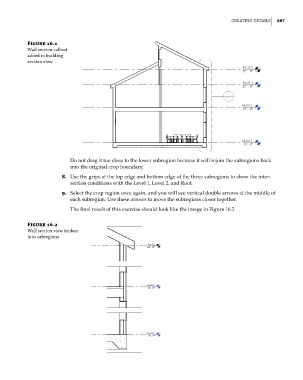

Figure 16.1
Wall section callout
added to building
section view
Do not drag it too close to the lower subregion because it will rejoin the subregions back
into the original crop boundary.
8. Use the grips at the top edge and bottom edge of the three subregions to show the inter-
section conditions with the Level 1, Level 2, and Roof.
9. Select the crop region once again, and you will see vertical double arrows at the middle of
each subregion. Use these arrows to move the subregions closer together.
The final result of this exercise should look like the image in Figure 16.2.
Figure 16.2
Wall section view broken
into subregions
