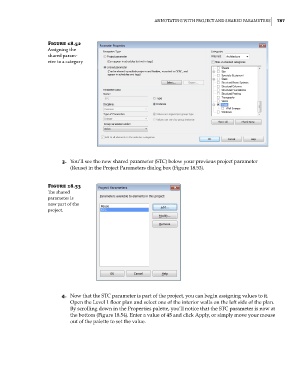

AnnotAting with ProjeCt AnD shAreD PArAMeters 787

Figure 18.52
Assigning the
shared param-
eter to a category

3. You’ll see the new shared parameter (STC) below your previous project parameter
(Reuse) in the Project Parameters dialog box (Figure 18.53).

Figure 18.53
The shared
parameter is
now part of the
project.

4. Now that the STC parameter is part of the project, you can begin assigning values to it.
Open the Level 1 floor plan and select one of the interior walls on the left side of the plan.
By scrolling down in the Properties palette, you’ll notice that the STC parameter is now at
the bottom (Figure 18.54). Enter a value of 45 and click Apply, or simply move your mouse
out of the palette to set the value.
