AnnotAting with ProjeCt AnD shAreD PArAMeters 789

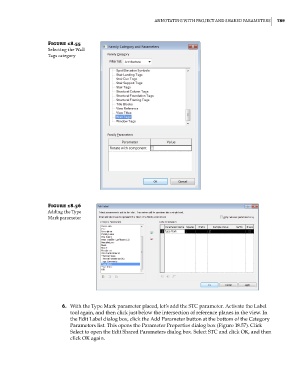

Figure 18.55
selecting the wall
tags category
Figure 18.56
Adding the type
Mark parameter
6. With the Type Mark parameter placed, let’s add the STC parameter. Activate the Label
tool again, and then click just below the intersection of reference planes in the view. In
the Edit Label dialog box, click the Add Parameter button at the bottom of the Category
Parameters list. This opens the Parameter Properties dialog box (Figure 18.57). Click
Select to open the Edit Shared Parameters dialog box. Select STC and click OK, and then
click OK again.
