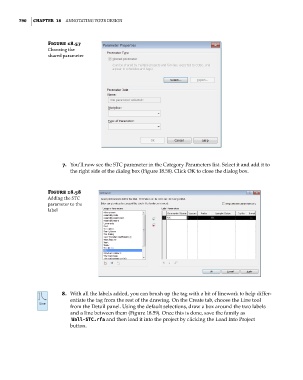

790 | ChApTer 18 AnnotAting Your Design

Figure 18.57
Choosing the
shared parameter

7. You’ll now see the STC parameter in the Category Parameters list. Select it and add it to
the right side of the dialog box (Figure 18.58). Click OK to close the dialog box.

Figure 18.58
Adding the stC
parameter to the
label

8. With all the labels added, you can brush up the tag with a bit of linework to help differ-
entiate the tag from the rest of the drawing. On the Create tab, choose the Line tool
from the Detail panel. Using the default selections, draw a box around the two labels
and a line between them (Figure 18.59). Once this is done, save the family as
Wall-STC.rfa and then load it into the project by clicking the Load Into Project
button.
