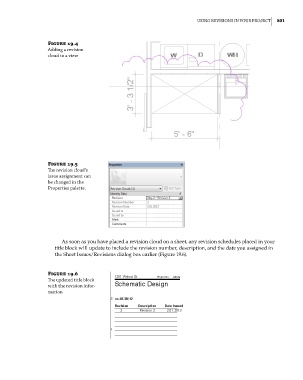

using revisions in Your ProjeCt 801
Figure 19.4
adding a revision
cloud to a view
Figure 19.5
The revision cloud’s
issue assignment can
be changed in the
Properties palette.
As soon as you have placed a revision cloud on a sheet, any revision schedules placed in your
title block will update to include the revision number, description, and the date you assigned in
the Sheet Issues/Revisions dialog box earlier (Figure 19.6).
Figure 19.6
The updated title block
with the revision infor-
mation
