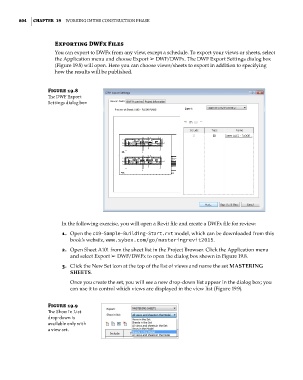

804 | ChaPteR 19 Working in the ConstruCtion Phase

exporting DWFx Files
You can export to DWFx from any view, except a schedule. To export your views or sheets, select
the Application menu and choose Export ➢ DWF/DWFx. The DWF Export Settings dialog box
(Figure 19.8) will open. Here you can choose views/sheets to export in addition to specifying
how the results will be published.

Figure 19.8
The DWF export
settings dialog box

In the following exercise, you will open a Revit file and create a DWFx file for review:

1. Open the c19-Sample-Building-Start.rvt model, which can be downloaded from this
book’s website, www.sybex.com/go/masteringrevit2015.
2. Open Sheet A101 from the sheet list in the Project Browser. Click the Application menu
and select Export ➢ DWF/DWFx to open the dialog box shown in Figure 19.8.
3. Click the New Set icon at the top of the list of views and name the set MASTERING
SHEETS.
Once you create the set, you will see a new drop-down list appear in the dialog box; you
can use it to control which views are displayed in the view list (Figure 19.9).

Figure 19.9
The show in list
drop-down is
available only with
a view set.
