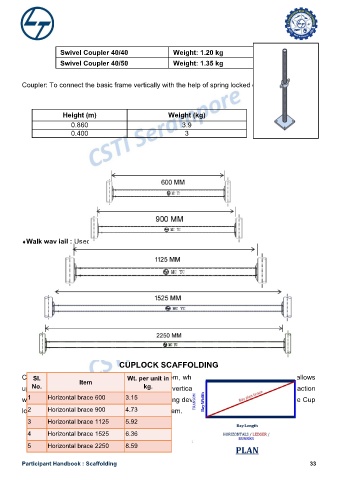

Page 33 - Scaffolding Hand Book - L&T CSTI Serampore

Swivel Coupler 40/40 Weight: 1.20 kg
Swivel Coupler 40/50 Weight: 1.35 kg

Coupler: To connect the basic frame vertically with the help of spring locked connecting pin

Height (m) Weight (kg)

0.860 3.9

0.400 3

Walk way jail : Used as a walkway at top of the scaffold frame

CUPLOCK SCAFFOLDING

Cup lock modular system is a multipurpose system, which features the connection which allows
Sl.
Wt. per unit in
Item
kg.
No.
up to 4 horizontal members to be connected to vertical member in one single clamping action
3.15
1
Horizontal brace 600
without using of nuts, bolts, or wedges. The locking device, formed by two cups, makes the Cup
Horizontal brace 900
2
4.73
lock very fast, easy, and versatile scaffolding system.
3 Horizontal brace 1125 5.92
4 Horizontal brace 1525 6.36
5 Horizontal brace 2250 8.59

Participant Handbook : Scaffolding 33
