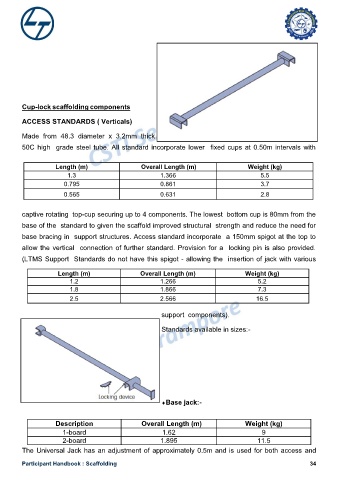

Page 34 - Scaffolding Hand Book - L&T CSTI Serampore

Cup-lock scaffolding components

ACCESS STANDARDS ( Verticals)

Made from 48.3 diameter x 3.2mm thick

50C high grade steel tube. All standard incorporate lower fixed cups at 0.50m intervals with

Length (m) Overall Length (m) Weight (kg)
1.3 1.366 5.5
0.795 0.861 3.7
0.565 0.631 2.8

captive rotating top-cup securing up to 4 components. The lowest bottom cup is 80mm from the

base of the standard to given the scaffold improved structural strength and reduce the need for
base bracing in support structures. Access standard incorporate a 150mm spigot at the top to

allow the vertical connection of further standard. Provision for a locking pin is also provided.
(LTMS Support Standards do not have this spigot - allowing the insertion of jack with various

Length (m) Overall Length (m) Weight (kg)
1.2 1.266 5.2
1.8 1.866 7.3
2.5 2.566 16.5

support components).

Standards available in sizes:-

Base jack:-

Description Overall Length (m) Weight (kg)
1-board 1.62 9
2-board 1.895 11.5
The Universal Jack has an adjustment of approximately 0.5m and is used for both access and

Participant Handbook : Scaffolding 34
