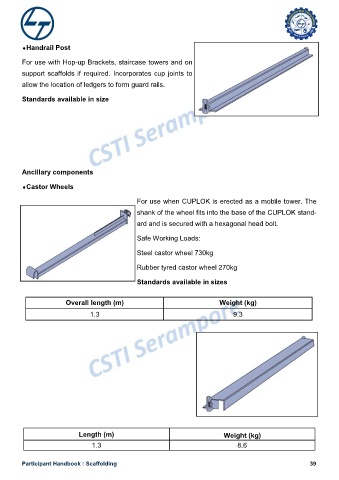

Handrail Post

         For use with Hop-up Brackets, staircase towers and on
         support scaffolds if required. Incorporates cup joints to

         allow the location of ledgers to form guard rails.

         Standards available in size










         Ancillary components

         Castor Wheels

                                                 For use when CUPLOK is erected as a mobile tower. The

                                                 shank of the wheel fits into the base of the CUPLOK stand-
                                                 ard and is secured with a hexagonal head bolt.

                                                 Safe Working Loads:


                                                 Steel castor wheel 730kg

                                                 Rubber tyred castor wheel 270kg

                                                 Standards available in sizes



                        Overall length (m)                                    Weight (kg)
                                 1.3                                               9.3
























                             Length (m)                                         Weight (kg)

                                 1.3                                                8.6


         Participant Handbook : Scaffolding                                                                   39
