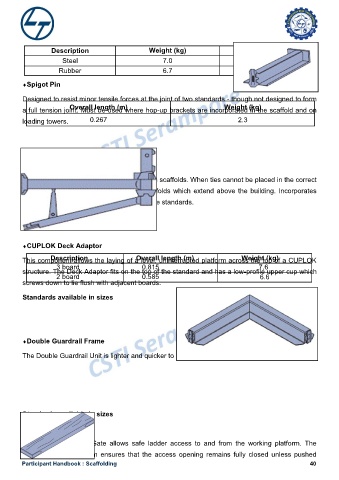

Page 40 - Scaffolding Hand Book - L&T CSTI Serampore

Description Weight (kg) Diameter (mm)
Steel 7.0 200

Rubber 6.7 200

Spigot Pin

Designed to resist minor tensile forces at the joint of two standards - though not designed to form
Weight (kg)
Overall length (m)
a full tension joint. Must be used where hop-up brackets are incorporated in the scaffold and on
loading towers. 0.267 2.3

Standards available in sizes

Access Ledger Brace

Provides ledger-bracing on CUPLOK access scaffolds. When ties cannot be placed in the correct

position or have been removed, or on scaffolds which extend above the building. Incorporates

fixed wedge half couplers which locate on the standards.

Standards available in sizes

CUPLOK Deck Adaptor

Overall length (m)
Description
Weight (kg)
This component allows the laying of a level, uninterrupted platform across the top of a CUPLOK
3 board 0.815 7.6
structure. The Deck Adaptor fits on the top of the standard and has a low-profile upper cup which
2 board 0.585 6.6
screws down to lie flush with adjacent boards.
Standards available in sizes

Double Guardrail Frame

The Double Guardrail Unit is lighter and quicker to install than two separate ledgers.

Standards available in sizes

Ladder Safety Gates

The CUPLOK Safety Gate allows safe ladder access to and from the working platform. The

sprung gate mechanism ensures that the access opening remains fully closed unless pushed
Participant Handbook : Scaffolding 40
