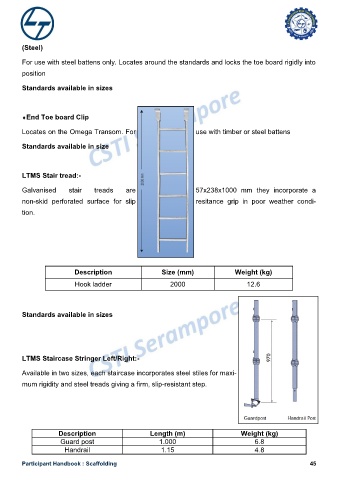

Page 45 - Scaffolding Hand Book - L&T CSTI Serampore
P. 45
(Steel)
For use with steel battens only. Locates around the standards and locks the toe board rigidly into
position
Standards available in sizes
End Toe board Clip
Locates on the Omega Transom. For use with timber or steel battens
Standards available in size
LTMS Stair tread:-
Galvanised stair treads are 57x238x1000 mm they incorporate a
non-skid perforated surface for slip resitance grip in poor weather condi-
tion.
Description Size (mm) Weight (kg)
Hook ladder 2000 12.6
Standards available in sizes
LTMS Staircase Stringer Left/Right:-
Available in two sizes, each staircase incorporates steel stiles for maxi-
mum rigidity and steel treads giving a firm, slip-resistant step.
Description Length (m) Weight (kg)
Guard post 1.000 6.8
Handrail 1.15 4.8
Participant Handbook : Scaffolding 45
