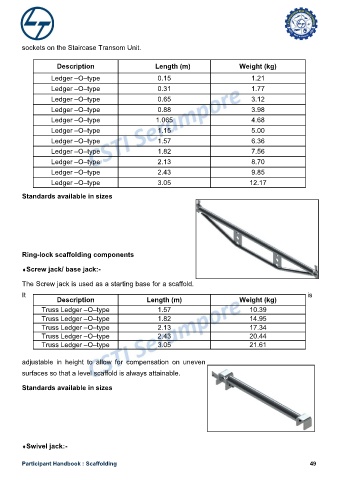

sockets on the Staircase Transom Unit.

Description Length (m) Weight (kg)
Ledger –O–type 0.15 1.21

Ledger –O–type 0.31 1.77
Ledger –O–type 0.65 3.12
Ledger –O–type 0.88 3.98

Ledger –O–type 1.065 4.68
Ledger –O–type 1.15 5.00
Ledger –O–type 1.57 6.36
Ledger –O–type 1.82 7.56

Ledger –O–type 2.13 8.70
Ledger –O–type 2.43 9.85
Ledger –O–type 3.05 12.17

Standards available in sizes

Ring-lock scaffolding components

Screw jack/ base jack:-

The Screw jack is used as a starting base for a scaffold.

It is
Description Length (m) Weight (kg)
Truss Ledger –O–type 1.57 10.39
Truss Ledger –O–type 1.82 14.95
Truss Ledger –O–type 2.13 17.34
Truss Ledger –O–type 2.43 20.44
Truss Ledger –O–type 3.05 21.61

adjustable in height to allow for compensation on uneven

surfaces so that a level scaffold is always attainable.

Standards available in sizes

Swivel jack:-

Participant Handbook : Scaffolding 49
