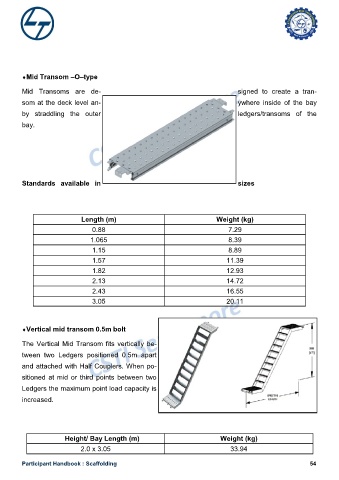

Mid Transom –O–type

Mid Transoms are de- signed to create a tran-

som at the deck level an- ywhere inside of the bay
by straddling the outer ledgers/transoms of the
bay.

Standards available in sizes

Length (m) Weight (kg)
0.88 7.29

1.065 8.39
1.15 8.89

1.57 11.39
1.82 12.93

2.13 14.72

2.43 16.55
3.05 20.11

Vertical mid transom 0.5m bolt

The Vertical Mid Transom fits vertically be-

tween two Ledgers positioned 0.5m apart
and attached with Half Couplers. When po-

sitioned at mid or third points between two
Ledgers the maximum point load capacity is

increased.

Height/ Bay Length (m) Weight (kg)

2.0 x 3.05 33.94
