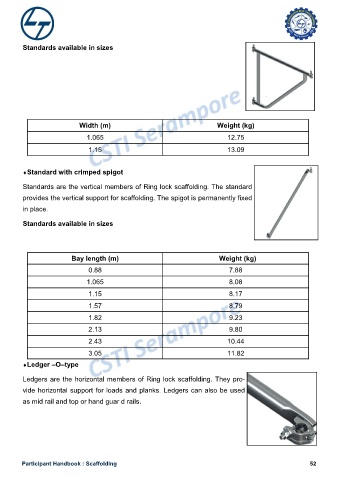

Page 52 - Scaffolding Hand Book - L&T CSTI Serampore

Standards available in sizes

Width (m) Weight (kg)
1.065 12.75

1.15 13.09

Standard with crimped spigot

Standards are the vertical members of Ring lock scaffolding. The standard
provides the vertical support for scaffolding. The spigot is permanently fixed

in place.

Standards available in sizes

Bay length (m) Weight (kg)
0.88 7.88

1.065 8.08

1.15 8.17
1.57 8.79

1.82 9.23
2.13 9.80

2.43 10.44

3.05 11.82
Ledger –O–type

Ledgers are the horizontal members of Ring lock scaffolding. They pro-

vide horizontal support for loads and planks. Ledgers can also be used
as mid rail and top or hand guar d rails.

Participant Handbook : Scaffolding 52
