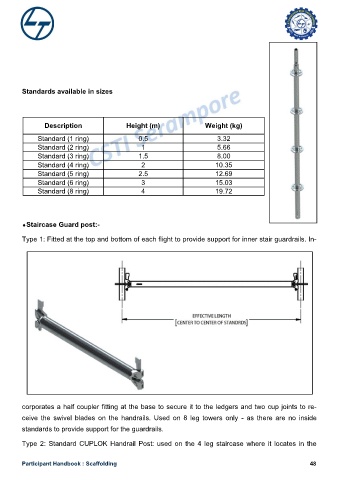

Standards available in sizes

Description Height (m) Weight (kg)

Standard (1 ring) 0.5 3.32
Standard (2 ring) 1 5.66
Standard (3 ring) 1.5 8.00
Standard (4 ring) 2 10.35
Standard (5 ring) 2.5 12.69
Standard (6 ring) 3 15.03
Standard (8 ring) 4 19.72

Staircase Guard post:-

Type 1: Fitted at the top and bottom of each flight to provide support for inner stair guardrails. In-

corporates a half coupler fitting at the base to secure it to the ledgers and two cup joints to re-

ceive the swivel blades on the handrails. Used on 8 leg towers only - as there are no inside
standards to provide support for the guardrails.

Type 2: Standard CUPLOK Handrail Post: used on the 4 leg staircase where it locates in the
