P. 51

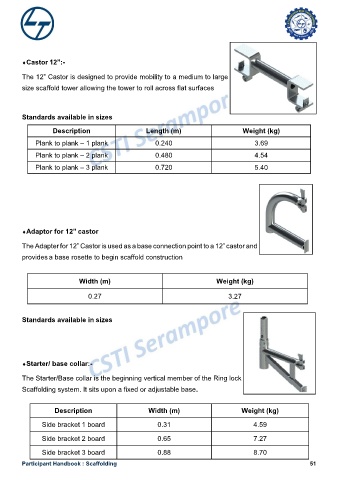

Castor 12”:-
The 12” Castor is designed to provide mobility to a medium to large
size scaffold tower allowing the tower to roll across flat surfaces
Standards available in sizes
Description Length (m) Weight (kg)
Plank to plank – 1 plank 0.240 3.69
Plank to plank – 2 plank 0.480 4.54
Plank to plank – 3 plank 0.720 5.40
Adaptor for 12” castor
The Adapter for 12” Castor is used as a base connection point to a 12” castor and
provides a base rosette to begin scaffold construction
Width (m) Weight (kg)
0.27 3.27
Standards available in sizes
Starter/ base collar:-
The Starter/Base collar is the beginning vertical member of the Ring lock
Scaffolding system. It sits upon a fixed or adjustable base.
Description Width (m) Weight (kg)
Side bracket 1 board 0.31 4.59
Side bracket 2 board 0.65 7.27
Side bracket 3 board 0.88 8.70
Participant Handbook : Scaffolding 51
