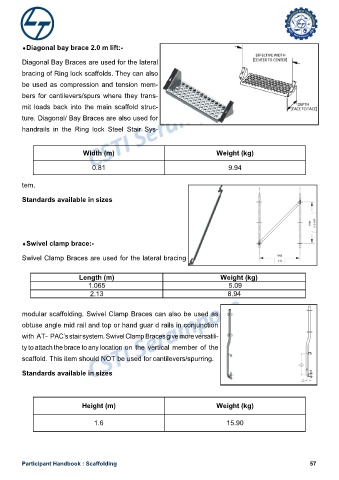

Diagonal bay brace 2.0 m lift:-

Diagonal Bay Braces are used for the lateral
bracing of Ring lock scaffolds. They can also

be used as compression and tension mem-
bers for cantilevers/spurs where they trans-

mit loads back into the main scaffold struc-
ture. Diagonal/ Bay Braces are also used for

handrails in the Ring lock Steel Stair Sys-

Width (m) Weight (kg)

0.81 9.94

tem.

Standards available in sizes

Swivel clamp brace:-

Swivel Clamp Braces are used for the lateral bracing

Length (m) Weight (kg)
1.065 5.09
2.13 8.94

modular scaffolding. Swivel Clamp Braces can also be used as
obtuse angle mid rail and top or hand guar d rails in conjunction

with AT-
on the vertical member of the

scaffold. This item should NOT be used for cantilevers/spurring.

Standards available in sizes

Height (m) Weight (kg)

1.6 15.90
