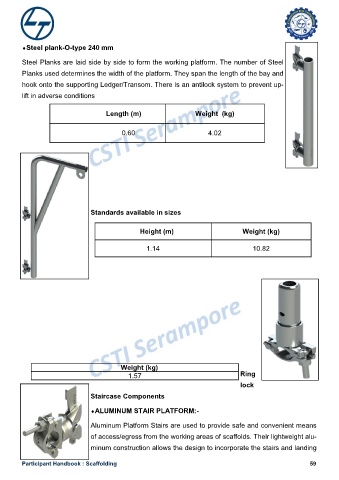

Steel plank-O-type 240 mm

Steel Planks are laid side by side to form the working platform. The number of Steel
Planks used determines the width of the platform. They span the length of the bay and

hook onto the supporting Ledger/Transom. There is an antilock system to prevent up-
lift in adverse conditions

Length (m) Weight (kg)

0.60 4.02

Standards available in sizes

Height (m) Weight (kg)

1.14 10.82

Weight (kg)
1.57 Ring
lock
Staircase Components

ALUMINUM STAIR PLATFORM:-

Aluminum Platform Stairs are used to provide safe and convenient means

of access/egress from the working areas of scaffolds. Their lightweight alu-
minum construction allows the design to incorporate the stairs and landing

Participant Handbook : Scaffolding 59
