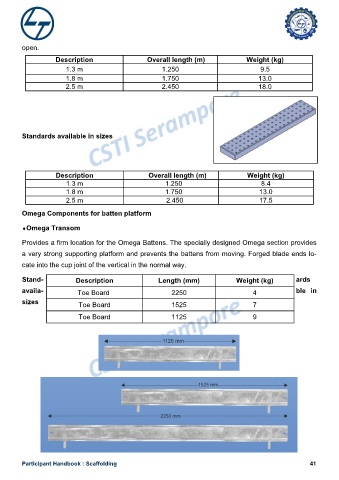

Page 41 - Scaffolding Hand Book - L&T CSTI Serampore

open.
Description Overall length (m) Weight (kg)
1.3 m 1.250 9.5
1.8 m 1.750 13.0
2.5 m 2.450 18.0

Standards available in sizes

Description Overall length (m) Weight (kg)
1.3 m 1.250 8.4
1.8 m 1.750 13.0
2.5 m 2.450 17.5

Omega Components for batten platform

Omega Transom

Provides a firm location for the Omega Battens. The specially designed Omega section provides

a very strong supporting platform and prevents the battens from moving. Forged blade ends lo-
cate into the cup joint of the vertical in the normal way.

Stand- Description Length (mm) Weight (kg) ards

availa- Toe Board 2250 4 ble in
sizes
Toe Board 1525 7

Toe Board 1125 9

Participant Handbook : Scaffolding 41
