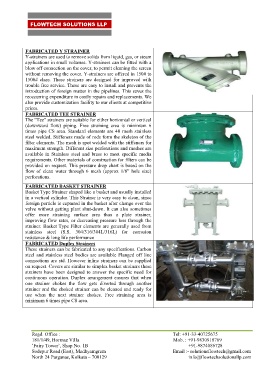

Page 45 - Catalogue_FSLLP

FLOWTECH SOLUTIONS LLP

FABRICATED Y STRAINER
Y-strainers are used to remove solids from liquid, gas, or steam
applications in small volumes. Y-strainers can be fitted with a
blow off connection on the cover, to permit cleaning the screen
without removing the cover. Y-strainers are offered in 150# to
1500# class. These strainers are designed for improved with
trouble free service. These are easy to install and prevents the
introduction of foreign matter in the pipelines. This saves the
reoccurring expenditure in costly repairs and replacements. We
also provide customization facility to our clients at competitive
prices.
FABRICATED TEE STRAINER
The “Tee” strainers are suitable for either horizontal or vertical
(downward flow) piping. Free straining area is minimum 6
times pipe CS area. Standard elements are 40 mesh stainless
steel welded. Stiffeners made of rods form the skeleton of the
filter elements. The mesh is spot welded with the stiffeners for
maximum strength. Different size perforations and meshes are
available in Stainless steel and brass to meet specific media
requirements. Other materials of construction for filters can be
provided on request. This pressure drop chart is based on the
flow of clean water through 6 mesh (approx 1/8” hole size)
perforations.

FABRICATED BASKET STRAINER
Basket Type Strainer shaped like a basket and usually installed
in a vertical cylinder. This Strainer is very easy to clean, since
foreign particle is captured in the basket after change over the
valve without getting plant shut-down. It can also sometimes
offer more straining surface area than a plate strainer,
improving flow rates, or decreasing pressure loss through the
strainer. Basket Type Filter elements are generally used from
stainless steel (S.S. 304/316/304L/316L) for corrosion

resistance & long life performance
FABRICATED Duplex Strainers
These strainers can be fabricated to any specifications. Carbon
steel and stainless steel bodies are available Flanged off line
connections are std. However inline strainers can be supplied
on request. Covers are similar to simplex basket strainers these
strainers have been designed to answer the specific need for
continuous operation. Duplex arrangement ensures that when
one strainer chokes the flow gets diverted through another
strainer and the choked strainer can be cleaned and ready for
use when the next strainer chokes. Free straining area is
minimum 6 times pipe CS area.
