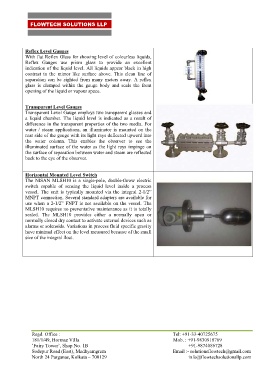

Page 47 - Catalogue_FSLLP

FLOWTECH SOLUTIONS LLP

Reflex Level Gauges
With flat Reflex Glass for showing level of colourless liquids,
Reflex Gauges use prism glass to provide an excellent
indication of the liquid level. All liquids appear black in high
contrast to the mirror like surface above. This clean line of
separation can be sighted from many meters away. A reflex
glass is clamped within the gauge body and seals the front
opening of the liquid or vapour space.

Transparent Level Gauges
Transparent Level Gauge employs two transparent glasses and
a liquid chamber. The liquid level is indicated as a result of
difference in the transparent properties of the two media. For
water / steam applications, an illuminator is mounted on the
rear side of the gauge with its light rays deflected upward into
the water column. This enables the observer to see the
illuminated surface of the water as the light rays impinge on
the surface of separation between water and steam are reflected
back to the eye of the observer.

Horizontal Mounted Level Switch
The NISAN MLSH10 is a single-pole, double-throw electric
switch capable of sensing the liquid level inside a process
vessel. The unit is typically mounted via the integral 2-1/2”
MNPT connection. Several standard adapters are available for
use when a 2-1/2” FNPT is not available on the vessel. The
MLSH10 requires no preventative maintenance as it is totally
sealed. The MLSH10 provides either a normally open or
normally closed dry contact to activate external devices such as
alarms or solenoids. Variations in process fluid specific gravity
have minimal effect on the level measured because of the small
size of the integral float.
