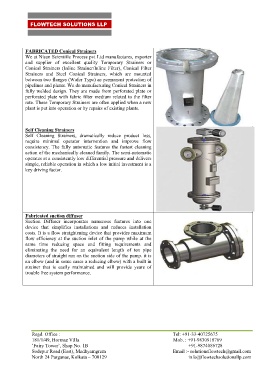

Page 46 - Catalogue_FSLLP

FLOWTECH SOLUTIONS LLP

FABRICATED Conical Strainers
We at Nisan Scientific Process pvt Ltd manufactures, exporter
and supplier of excellent quality Temporary Strainers or
Conical Strainers (Inline Strainer/Inline Filter), Conical Filter
Strainers and Steel Conical Strainers, which are mounted
between two flanges (Wafer Type) as permanent protection of
pipelines and plants. We do manufacturing Conical Strainers in
fully welded design. They are made from perforated plate or
perforated plate with fabric filter medium related to the filter
rate. These Temporary Strainers are often applied when a new
plant is put into operation or by repairs of existing plants.

Self Cleaning Strainers
Self Cleaning Strainers, dramatically reduce product loss,
require minimal operator intervention and improve flow
consistency. The fully automatic features the fastest cleaning
action of the mechanically cleaned family. The semi-automatic
operates at a consistently low differential pressure and delivers
simple, reliable operation in which a low initial investment is a
key driving factor.

Fabricated suction diffuser
Suction Diffuser incorporates numerous features into one
device that simplifies installations and reduces installation
costs. It is a flow straightening device that provides maximum
flow efficiency at the suction inlet of the pump while at the
same time reducing space and fitting requirements and
eliminating the need for an equivalent length of ten pipe
diameters of straight run on the suction side of the pump. it is
an elbow (and in some cases a reducing elbow) with a built in
strainer that is easily maintained and will provide years of
trouble free system performance.
