Infrastructure Security: Devices and Media • Chapter 6 367

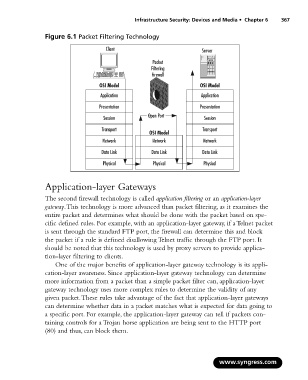

Figure 6.1 Packet Filtering Technology
Client Server

Packet
Filtering
Firewall
OSI Model OSI Model
Application Application

Presentation Presentation
Session Open Port Session

Transport Transport
OSI Model
Network Network Network

Data Link Data Link Data Link
Physical Physical Physical

Application-layer Gateways

The second firewall technology is called application filtering or an application-layer
gateway.This technology is more advanced than packet filtering, as it examines the
entire packet and determines what should be done with the packet based on spe-
cific defined rules. For example, with an application-layer gateway, if a Telnet packet
is sent through the standard FTP port, the firewall can determine this and block
the packet if a rule is defined disallowing Telnet traffic through the FTP port. It
should be noted that this technology is used by proxy servers to provide applica-
tion-layer filtering to clients.
One of the major benefits of application-layer gateway technology is its appli-
cation-layer awareness. Since application-layer gateway technology can determine
more information from a packet than a simple packet filter can, application-layer
gateway technology uses more complex rules to determine the validity of any
given packet.These rules take advantage of the fact that application-layer gateways
can determine whether data in a packet matches what is expected for data going to
a specific port. For example, the application-layer gateway can tell if packets con-
taining controls for a Trojan horse application are being sent to the HTTP port
(80) and thus, can block them.
