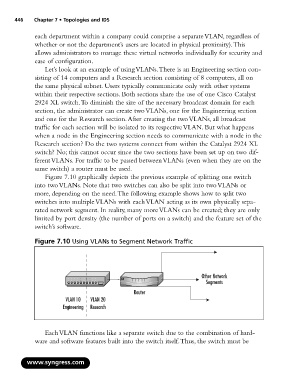

446 Chapter 7 • Topologies and IDS

each department within a company could comprise a separate VLAN, regardless of
whether or not the department’s users are located in physical proximity).This
allows administrators to manage these virtual networks individually for security and
ease of configuration.
Let’s look at an example of using VLANs.There is an Engineering section con-
sisting of 14 computers and a Research section consisting of 8 computers, all on
the same physical subnet. Users typically communicate only with other systems
within their respective sections. Both sections share the use of one Cisco Catalyst
2924 XL switch.To diminish the size of the necessary broadcast domain for each
section, the administrator can create two VLANs, one for the Engineering section
and one for the Research section.After creating the two VLANs, all broadcast
traffic for each section will be isolated to its respective VLAN. But what happens
when a node in the Engineering section needs to communicate with a node in the
Research section? Do the two systems connect from within the Catalyst 2924 XL
switch? No; this cannot occur since the two sections have been set up on two dif-
ferent VLANs. For traffic to be passed between VLANs (even when they are on the
same switch) a router must be used.
Figure 7.10 graphically depicts the previous example of splitting one switch
into two VLANs. Note that two switches can also be split into two VLANs or
more, depending on the need.The following example shows how to split two
switches into multiple VLANs with each VLAN acting as its own physically sepa-
rated network segment. In reality, many more VLANs can be created; they are only
limited by port density (the number of ports on a switch) and the feature set of the
switch’s software.

Figure 7.10 Using VLANs to Segment Network Traffic

Other Network
Segments
Router
VLAN 10 VLAN 20
Engineering Research

Each VLAN functions like a separate switch due to the combination of hard-
ware and software features built into the switch itself.Thus, the switch must be
