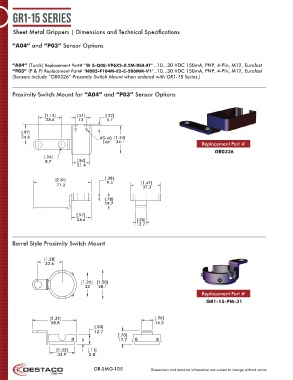

Page 105 - Destaco - Sheet Metal Grippers
P. 105
GR1-15 Series
Sheet Metal Grippers | Dimensions and Technical Specifications
“A04” and “P03” Sensor Options
“A04” (Turck) Replacement Part# “Bi 5-Q08-VP6X2-0.2M-RS4.4T” ..10...30 VDC 150mA, PNP, 4-Pin, M12, Eurofast
“P03” (P & F) Replacement Part# “NBB5-F104M-E2-C-200MM-V1” ..10...30 VDC 150mA, PNP, 4-Pin, M12, Eurofast
(Sensors include “GR0326” Proximity Switch Mount when ordered with GR1-15 Series.)
Proximity Switch Mount for “A04” and “P03” Sensor Options
[1.13] [.51] [.22]
28.6 13 5.7
[.97]
24.6 #5-40 [1.34]
[1.43]
36.3 TAP 34.1 Replacement Part #
GR0326
[.34]
8.7 [.84] [1.19] [1.27]
21.4
30.2 32.3
[.32] [2.81] [.38] [1.47]
9.5
Ø8.2 71.3 37.3
[.78]
[2.42] 19.7 [.56]
61.3 [.53] 14.3
[.97] 13.5
24.6 [.76] [.50]
19.3 12.7
Barrel Style Proximity Switch Mount
[1.28]
32.6
[1.26] [1.50]
32 38.1
Replacement Part #
GR1-15-PM-31
[2.32] [.56]
58.8 14.3
[.50]
12.7
[.70]
17.7
[1.33] [.11]
33.9 2.8
GR-SMG-105 Dimensions and technical information are subject to change without notice
