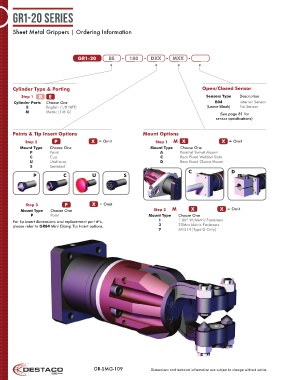

GR1-20 Series

Sheet Metal Grippers | Ordering Information

GR1-20 BE 180 - DXX - MXX -
-

Cylinder Type & Porting Open/Closed Sensor
Step 1 B B E Sensors Type Description
Cylinder Ports Choose One B04 Internal Sensor
E English (1/8 NPT) (Leave Blank) No Sensor
M Metric (1/8 G)
(See page 81 for
sensor specifications)

Points & Tip Insert Options Mount Options
Step 2 D D P P P X = Omit Step 1 M X X X X = Omit

Mount Type Choose One Mount Type Choose One
P Point A Parallel Swivel Mount
C Cup C Rear Fixed Welded Style
U Urethane D Rear Fixed Clamp Mount
S Serrated A
C D
P C U S

Step 3 D D P P P X = Omit

Mount Type Choose One Step 2 M XX X X = Omit

P Point Mount Type Choose One
For tip insert dimensions and replacement part #’s, 1 1.00” W/Metric Fasteners
please refer to GR84 Mini Clamp Tip Insert options. 3 25Mm Metric Fasteners
7 M1514 (Type D Only)
