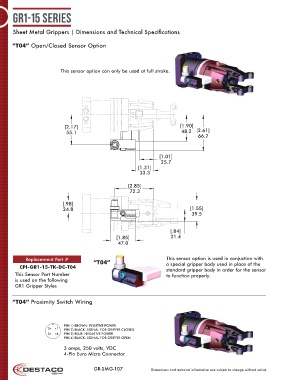

Page 107 - Destaco - Sheet Metal Grippers

GR1-15 Series

Sheet Metal Grippers | Dimensions and Technical Specifications

“T04” Open/Closed Sensor Option

This sensor option can only be used at full stroke.

[2.17] [1.90]
55.1 48.2 [2.61]
66.2

[1.01]
25.7
[1.31]
33.3

[2.85]
72.3

[.98]
24.8 [1.55]
39.5

[.84]
[1.85] 21.4
47.0

Replacement Part # “T04” This sensor option is used in conjuction with
CPI-GR1-15-TK-DC-T04 a special gripper body used in place of the
standard gripper body in order for the sensor
This Sensor Part Number to function properly.
is used on the following
GR1 Gripper Styles

“T04” Proximity Switch Wiring

PIN 1) BROWN: POSITIVE POWER
2 1 PIN 2) BLACK: SIGNAL FOR GRIPPER CLOSED
3 4 PIN 3) BLUE: NEGATIVE POWER
PIN 4) BLACK: SIGNAL FOR GRIPPER OPEN
3 amps, 250 volts, VDC
4-Pin Euro Micro Connector

GR-SMG-107 Dimensions and technical information are subject to change without notice
