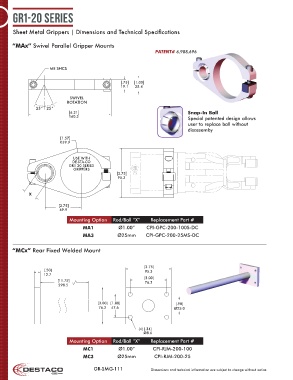

GR1-20 Series

Sheet Metal Grippers | Dimensions and Technical Specifications

“MAx” Swivel Parallel Gripper Mounts
PATENT# 6,988,696

M8 SHCS

[.75] [1.00]
19.1 25.4

SWIVEL
ROTATION
25° 25°
[6.31] Snap-In Ball
160.3
Special patented design allows
user to replace ball without
disassemby
[1.57]
R39.9

USE WITH
DE-STA-CO
GR1 20 SERIES
GRIPPERS
[3.75]
95.3

X

[2.75]
69.9
Mounting Option Rod/Ball “X” Replacement Part #
MA1 Ø1.00” CPI-GPC-200-100S-DC
MA3 Ø25mm CPI-GPC-200-25MS-DC

“MCx” Rear Fixed Welded Mount

[3.75]
[.50] 95.3
12.7 [3.00]
[11.75] 76.2
298.5

[3.00] [1.88] [.98]
76.2 47.6 Ø25.0

(4) [.34]
Ø8.6
Mounting Option Rod/Ball “X” Replacement Part #
MC1 Ø1.00” CPI-RJM-200-100
MC3 Ø25mm CPI-RJM-200-25

GR-SMG-111 Dimensions and technical information are subject to change without notice
