MPD Series

Specifi cations

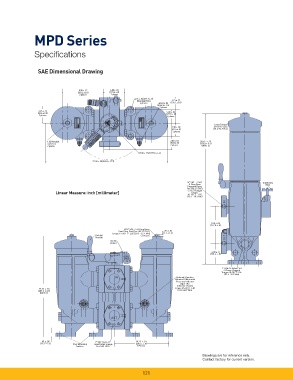

SAE Dimensional Drawing

8.00 ± .12 4.00 ± .03
(203.2 ± 3.0) (101.6 ± .8)
2 places 2 places
ø.75 ± .03 (ø19.1 ± .8)
Mounting Holes 4.91 ± .12
6 places ø6.40 ± .06 (124.7 ± 3.0)
(ø162.6 ± 1.5)
2 places
3.25 ± .12 5.00 ± .03
(82.6 ± 3.0) (127.0 ± .8)
2 places 2 places
ON-DUTY ROTATE PULL TO
Cover Torque
ON-DUTY PULL TO ROTATE 2.50 ± .03 60-70 FT-LBS
(63.5 ± .8) (81.4-94.9 Nm)
2 places
DIRECTIONAL
FILTER CHANGE OVER PROCEDURE FILTER CHANGE OVER PROCEDURE
1. OPEN EQUALIZING VALVE TO BALANCE PRESSURE.
3 PULL DETENT RING TO ALLOW HANDLE ROTATION.
4. ROTATE RATCHET HANDLE BACK & FORTH OVER
INLET UNTIL FULLY SHIFTED/DETENTEN GAGES.
1.62 Nominal 2. SHIFT DIRECTIONAL LEVER ON RATCHET HANDLE. 2.00 ± .03 28.62 ± .25
cover hex (50.8 ± .8) (726.9 ± 6.4)
2 places
2 places (MPD-2)
R7.00 ± .25 (R177.8 ± 6.4)
22.40 ± .50 (569.0 ± 12.7)
¼“ SAE - 4 SAE Equalizing
O-Ring Boss Valve
Pressure Ports
Per SAE J1926/1
-2 PLS Plugged
Torque
Linear Measure: inch [millimeter] 10-15 FT - LBS
(13.6 - 20.3 Nm)
IN
7.00 ± .03
(177.8 ± .8)
5/16 SAE - 5 O-Ring Boss
Vent Plug, Port Per SAE J1926/1 .28 ± .06
Torque 15-20 FT - LBS [20.3 - 27.1 Nm] [7.1 ± 1.5]
Ratchet - 2 Places
Handle OUT
Handle
Detent
4.00 ± .0
(101.6 ± .8)
INLET FOR
LIFT RING
CHANG EO VER
AND RO TAT E
HANDLE OVER
1“ SAE-16 Drain Port
2 Places Plugged
Torque 60-70 FT-LBs
(81.4 -94.9 Nm)
IN Optional Chamber
Mounted Differential
Pressure Indicator
(Type M2
Indicator shown)
19.18 ± .18 Torque 25-30 FT-LBS
[487.2 ± 4.6] [33.9-40.7 Nm]
(MPD-1)
OUT
.69 ± .09 2 SAE Code 61 10.25 ± .03
[17.5 ± 2.3] Foot Mounting Inlet/Outlet Flange [260.4 ± .8]
Surface Per SAE J518 2 Places
Drawings are for reference only.
Contact factory for current version.
