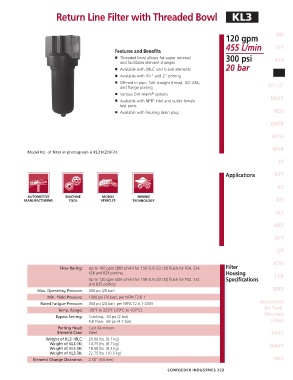

Return Line Filter with Threaded Bowl KL3

120 gpm IRF
455 L/min TF1
Features and Benefits
■ Threaded bowl allows for easier removal 300 psi KF3
and facilitates element changes
■ Available with 18LC and K-size elements 20 bar KL3
1
■ Available with 1 ⁄2" and 2" porting
■ Offered in pipe, SAE straight thread, ISO 228,
and flange porting LF1–2"
■ Various Dirt Alarm options
®
MLF1
■ Available with NPTF inlet and outlet female
test ports
■ Available with housing drain plug RLD
GRTB

MTA

MTB
Model No. of filter in photograph is KL31KZ10F24.
ZT

Applications KFT

RT

RTI

LRT

ART

BFT

QT

KTK
Flow Rating: Up to 100 gpm (380 L/min) for 150 SUS (32 cSt) fluids for P24, S24, Filter
F24 and B24 porting Housing LTK
Up to 120 gpm (455 L/min) for 150 SUS (32 cSt) fluids for P32, S32 Specifications
and B32 porting
Max. Operating Pressure: 300 psi (20 bar) MRT
Min. Yield Pressure: 1000 psi (70 bar), per NFPA T2.6.1
Rated Fatigue Pressure: 300 psi (20 bar), per NFPA T2.6.1-2005 Accessories
Temp. Range: -20°F to 225°F (-29°C to 107°C) for Tank-
Bypass Setting: Cracking: 30 psi (2 bar) Mounted
Full Flow: 68 psi (4.7 bar) Filters
Porting Head: Cast Aluminum
Element Case: Steel PAF1
Weight of KL3-18LC: 20.00 lbs. (9.1 kg)
Weight of KL3-1K: 14.75 lbs. (6.7 kg) MAF1
Weight of KL3-2K: 18.50 lbs. (8.4 kg)
Weight of KL3-3K: 22.75 lbs. (10.3 kg)
Element Change Clearance: 2.50" (64 mm) MF2

SCHROEDER INDUSTRIES 223
